3.00mm Dia, 4 Flute, Square End End Mill - 41621
SERIES: 16S
General Application End Mill

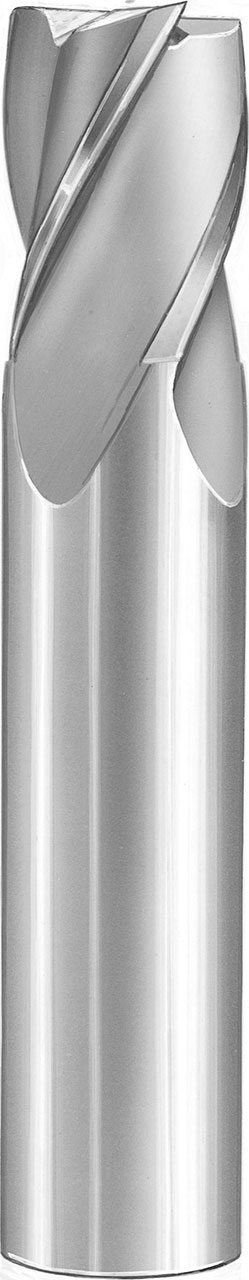

3.00mm Dia, 6.00mm LOC, 3.00mm Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series 16S, Square End End Mill - 41621
| Series Description | General Application End Mill |
|---|---|
| High Performance | No |
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

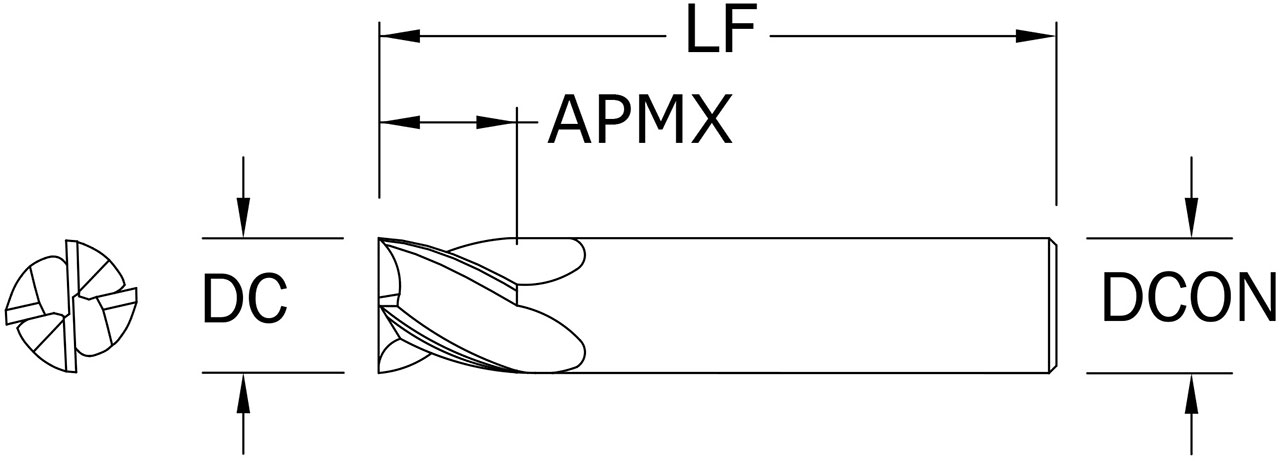

| Cutting Diameter (DC) (Decimal Inch) | 0.1181 |
| Cutting Diameter (DC) (mm) | 3.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1181 |
| Shank Diameter (DCON) (mm) | 3.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.2362 |
| Length of Cut (APMX) (mm) | 6.00 |
| Overall Length (LF) (Decimal Inch) | 1.4961 |
| Overall Length (LF) (mm) | 38.00 |
| Shank Length (LS) (Decimal Inch) | 1.2640 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0080 |
| Series | 16S |
| Weldon Flat | No |
| US Stock | 31 |
| Shank Length (LS) (mm) | 32.11 |
| Tool Length | Stub |
| Coating Description | Bright/Uncoated |
Alternate Products
3.00mm Dia, 6.00mm LOC, 3.00mm Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE (TiN) Coated, Series 14S, Double-End, Square End End Mill - 48888
U.S. stocked items ship next day
Total Available U.S. :3
3.00mm Dia, 6.00mm LOC, 3.00mm Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series 14S, Double-End, Square End End Mill - 48909
U.S. stocked items ship next day
Total Available U.S. :4

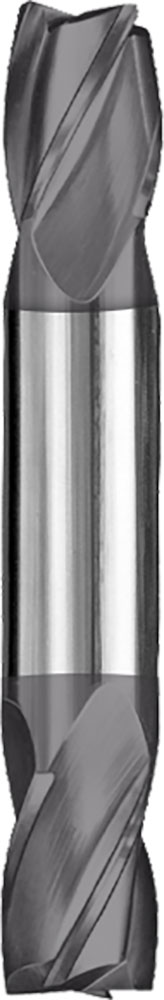

3.00mm Dia, 6.00mm LOC, 3.00mm Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 14S, Double-End, Square End End Mill - 48930
