20.00mm Dia, 7 Flute, Corner Radius End Mill - 74540
SERIES: 77MC
H-Carb
20.00mm Dia, 80.00mm LOC, 20.00mm Shank Dia, 0.50mm Radius, 7 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 77MC, H-Carb, Corner Radius End Mill - 74540
Feature & Benefits
Specializes in deep axial trochoidal and high-speed milling applications
Optimized core improves rigidity, chip flow and reduces deflection
| Series Description | H-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Corner Radius |
| Unit (inch/mm) | mm |
| Number of Flutes | 7 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.7874 |
| Cutting Diameter (DC) (mm) | 20.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.7874 |
| Shank Diameter (DCON) (mm) | 20.00 |
| Length of Cut (APMX) (Decimal Inch) | 3.1496 |
| Length of Cut (APMX) (mm) | 80.00 |
| Overall Length (LF) (Decimal Inch) | 5.5118 |
| Overall Length (LF) (mm) | 140.00 |
| Corner Radius (RE) (Decimal Inch) | 0.0197 |
| Corner Radius (RE) (mm) | 0.50 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.2661 |
| Non-Cutting Center Diameter (NCD) (mm) | 6.76 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Diameter (DCON) Tolerance (Decimal Inch) | +0.0000 / -0.00051 |
| Shank Diameter (DCON) Tolerance (mm) | +0.0000 / -0.0013 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Shipping Weight | 1.1550 |
| Series | 77MC |
| Weldon Flat | No |
| US Stock | 7 |
| Tool Length | Extra Long |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Flute Type | Spiral |
Alternate Products
20.00mm Dia, 80.00mm LOC, 20.00mm Shank Dia, 0.50mm Radius, 7 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series 77MC, H-Carb, Chip Breaker Corner Radius End Mill - 74543
U.S. stocked items ship next day
Total Available U.S. :8
20.00mm Dia, 80.00mm LOC, 20.00mm Shank Dia, 0.50mm Radius, 7 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 77MC, H-Carb, Chip Breaker Corner Radius End Mill - 74542
U.S. stocked items ship next day
Total Available U.S. :4
20.00mm Dia, 80.00mm LOC, 20.00mm Shank Dia, 0.50mm Radius, 7 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series 77MC, H-Carb, Corner Radius End Mill - 74541
U.S. stocked items ship next day
Total Available U.S. :0

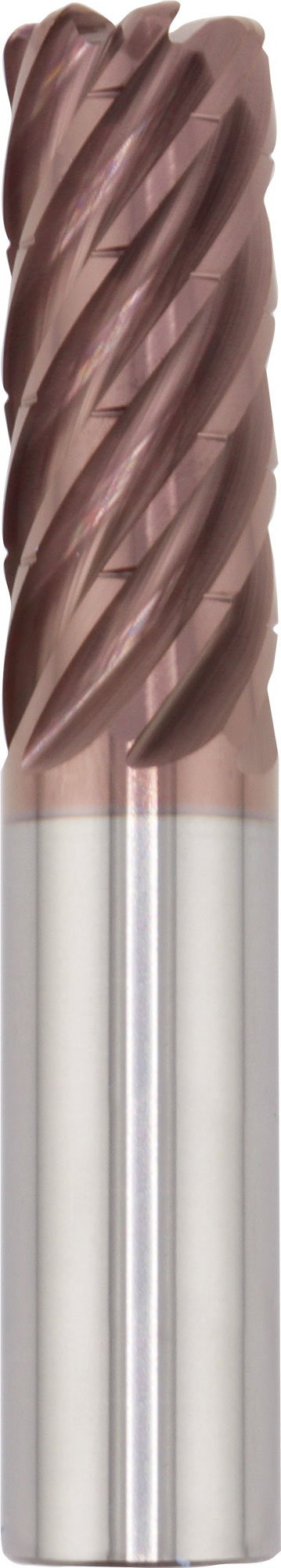

20.00mm Dia, 80.00mm LOC, 20.00mm Shank Dia, 0.50mm Radius, 7 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series 77MCR, H-Carb, Chip Breaker Corner Radius End Mill - 74847
U.S. stocked items ship next day
Total Available U.S. :0

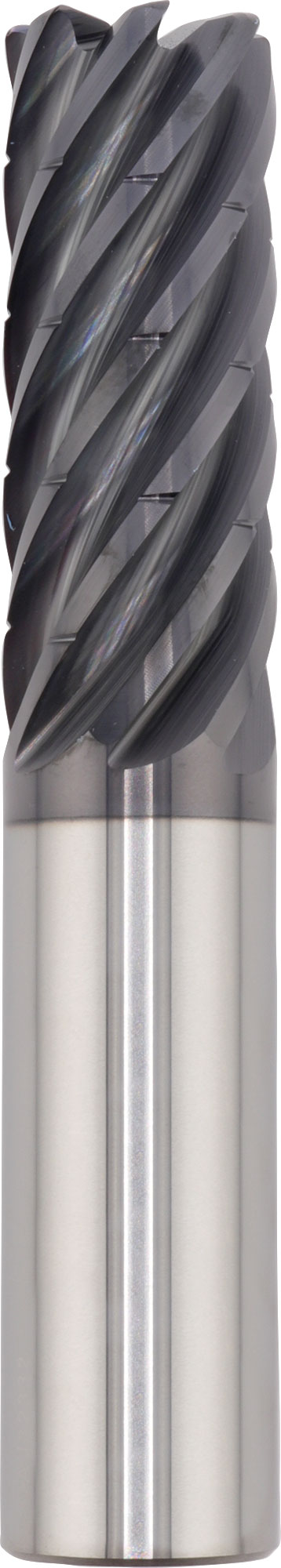

20.00mm Dia, 80.00mm LOC, 20.00mm Shank Dia, 0.50mm Radius, 7 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 77MCR, H-Carb, Chip Breaker Corner Radius End Mill - 74846
U.S. stocked items ship next day
Total Available U.S. :0

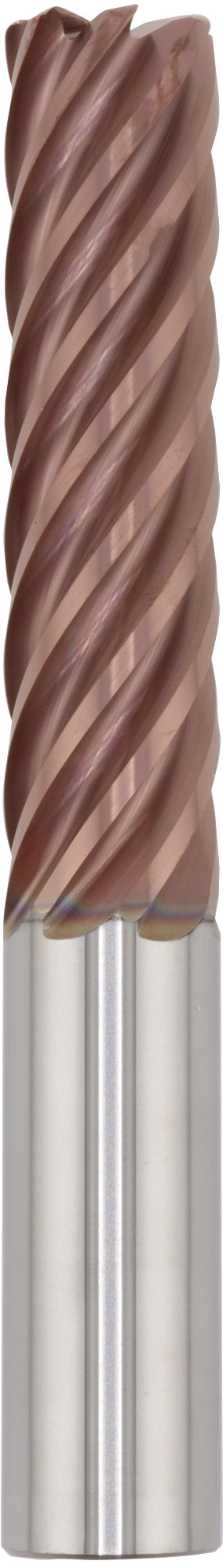

20.00mm Dia, 80.00mm LOC, 20.00mm Shank Dia, 0.50mm Radius, 7 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series 77MCR, H-Carb, Corner Radius End Mill - 74845
U.S. stocked items ship next day
Total Available U.S. :0

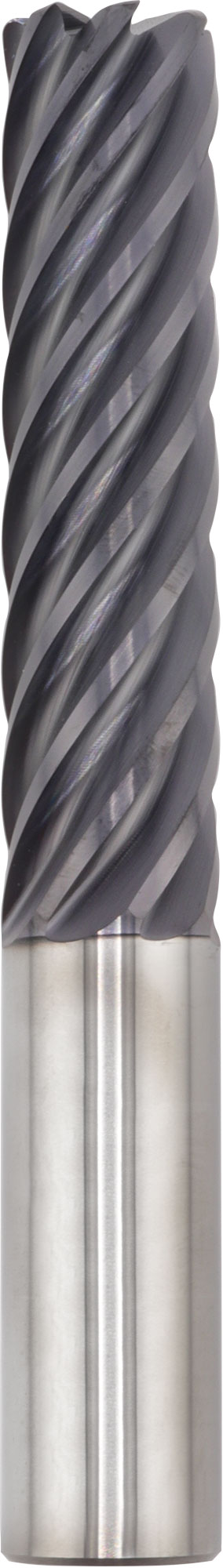

20.00mm Dia, 80.00mm LOC, 20.00mm Shank Dia, 0.50mm Radius, 7 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 77MCR, H-Carb, Corner Radius End Mill - 74844
