20.00mm Dia, 5 Flute, Corner Radius End Mill - 47067
SERIES: Z5C
Z-Carb-HPR
20.00mm Dia, 43.00mm LOC, 20.00mm Shank Dia, 4.00mm Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 47067
Feature & Benefits
An ideal balance of helix, indexing, flute depth, rake and relief
Variable indexing for chatter supression and patented edge geometry for shearing and strength
Chatter-free geometry allows deep cutting and high speed machining
Enhanced corner geometry with tight tolerance corner radii
Excels at roughing, ramping, high speed machining and finishing in a variety of materials
| Series Description | Z-Carb-HPR |
|---|---|
| High Performance | Yes |
| End Configuration | Corner Radius |
| Tool Length | Regular |
| Unit (inch/mm) | mm |
| Number of Flutes | 5 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.7874 |
| Cutting Diameter (DC) (mm) | 20.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.7874 |
| Shank Diameter (DCON) (mm) | 20.00 |
| Length of Cut (APMX) (Decimal Inch) | 1.6929 |
| Length of Cut (APMX) (mm) | 43.00 |
| Overall Length (LF) (Decimal Inch) | 4.0945 |
| Overall Length (LF) (mm) | 104.00 |
| Corner Radius (RE) (Decimal Inch) | 0.1575 |
| Corner Radius (RE) (mm) | 4.00 |
| Shank Length (LS) (Decimal Inch) | 2.4016 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.2760 |
| Non-Cutting Center Diameter (NCD) (mm) | 7.01 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
| Shank Type | Weldon (Drive Flat) |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| DIN Standard (Shank) | DIN 6535 HB |
| Shipping Weight | 0.9270 |
| Series | Z5C |
| Weldon Flat | Yes |
| US Stock | 0 |
| Shank Length (LS) (mm) | 61.00 |
| Coating Description | TM (Ti-NAMITE-M) |
| Flute Type | Spiral |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
Alternate Products
20.00mm Dia, 43.00mm LOC, 20.00mm Shank Dia, 4.00mm Radius, 5 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 48063
U.S. stocked items ship next day
Total Available U.S. :0
20.00mm Dia, 43.00mm LOC, 20.00mm Shank Dia, 4.00mm Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 48047
U.S. stocked items ship next day
Total Available U.S. :0

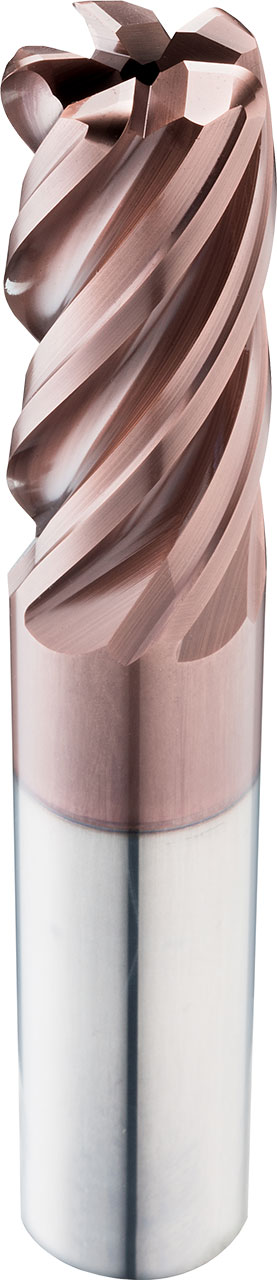

20.00mm Dia, 43.00mm LOC, 20.00mm Shank Dia, 4.00mm Radius, 5 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 47075
