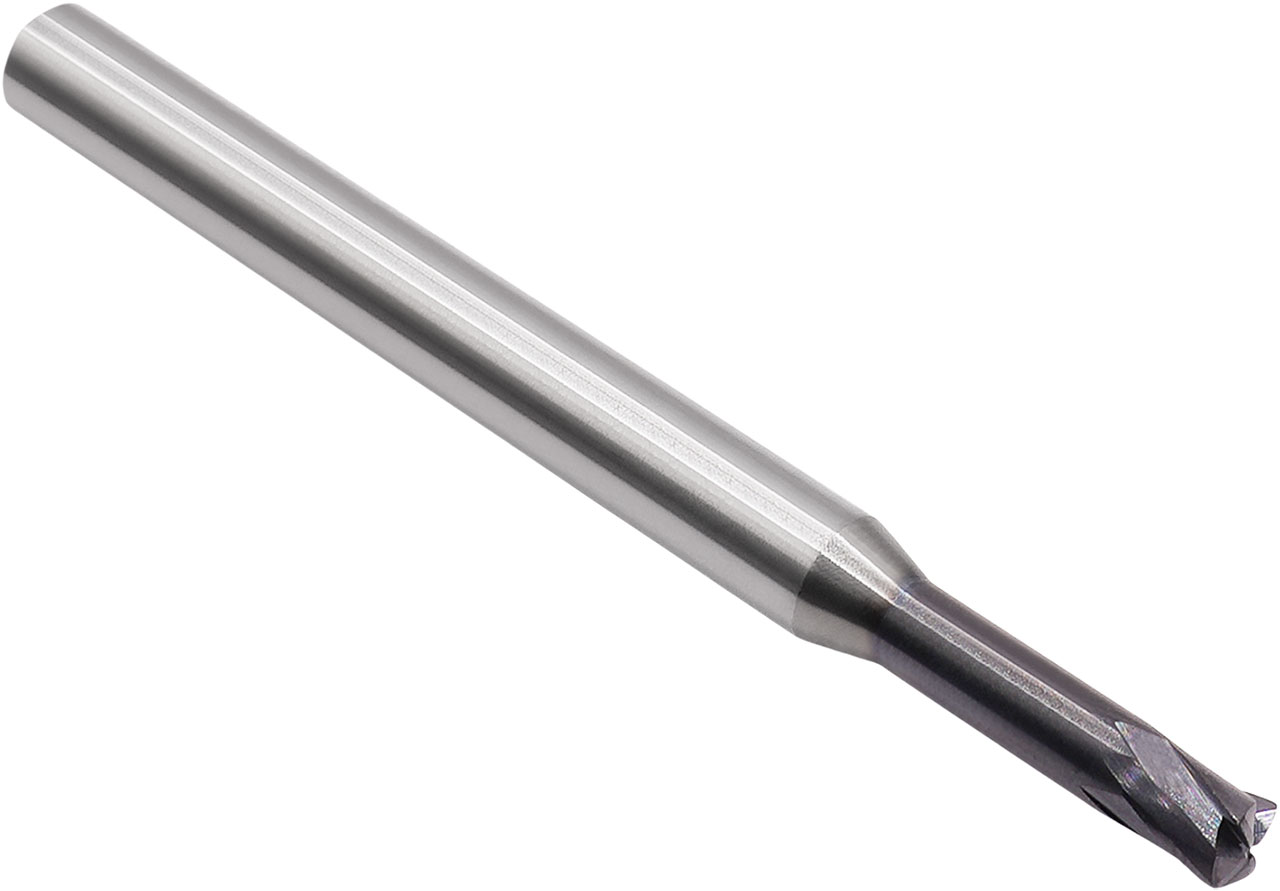

2.00mm Dia, 4 Flute, High Feed End Mill - 47902
EDP: 47902
SERIES: HFMS
Hi-Per Feed MS
2.00mm Dia, 0.10mm LOC, 6.00mm Shank Dia, 0.27mm TS, 4 Flute, 20 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Hi-Per Feed MS, High Feed End Mill - 47902
Feature & Benefits
Engineered for aggressive feeds, enabling faster machining and reduced production time, especially in stainless steels and high-temperature alloys.
Advanced geometry and dual axial radius cutting edge design redirect cutting forces into the spindle, minimizing tool deflection and ensuring reliable machining, even in demanding applications
Select skus feature internal coolant channels that deliver coolant directly to the cutting zone, enhancing chip evacuation and controlling heat for better performance and longevity.
The flute design promotes efficient chip removal, which is critical during aggressive high-feed milling, helping to maintain process stability and tool life.
Ti-NAMITE-A premium PVD coating reduces friction, improves wear resistance, and minimizes built-up edge, especially when machining tough materials like stainless steels and high-temp alloys.
| Flute Type | Spiral |
|---|---|
| Series | HFMS |
| Series Description | Hi-Per Feed MS |
| High Performance | Yes |
| End Configuration | Multi Radius |
| Tool Length | Long |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (M) Stainless Steel|(S) High Temp Alloy |
| Reach (xD) | 6xD |

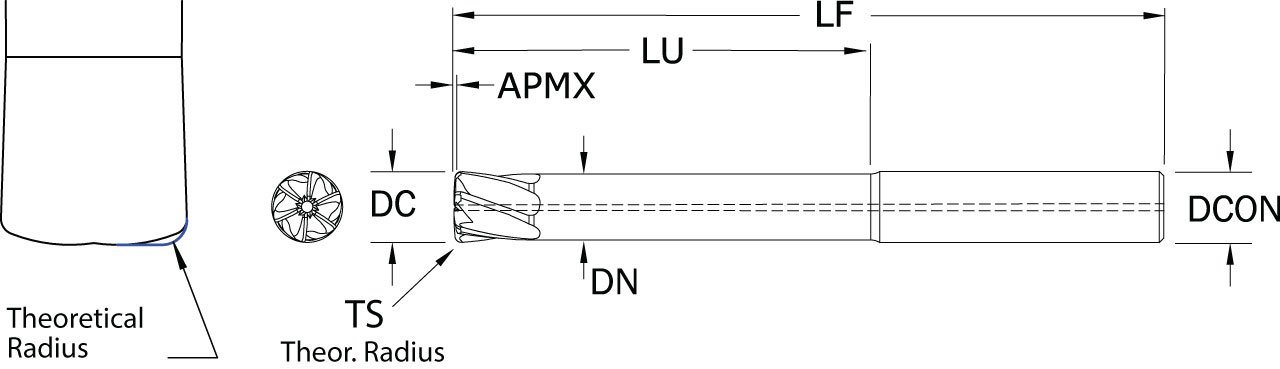

| Cutting Diameter (DC) (Decimal Inch) | 0.0787 |
| Cutting Diameter (DC) (mm) | 2.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2362 |
| Shank Diameter (DCON) (mm) | 6.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.0039 |
| Length of Cut (APMX) (mm) | 0.10 |
| Reach (LU) (Decimal Inch) | 0.4724 |
| Reach (LU) (mm) | 12.00 |
| Overall Length (LF) (Decimal Inch) | 2.9528 |
| Overall Length (LF) (mm) | 75.00 |
| Neck Diameter (DN) (Decimal Inch) | 0.0708 |
| Neck Diameter (DN) (mm) | 1.80 |
| Tip Radius (RE) (Decimal Inch) | 0.0680 |
| Tip Radius (RE) (mm) | 1.73 |
| Tapered Radius (RE2) (Decimal Inch) | 0.0068 |
| Tapered Radius (RE2) (mm) | 0.17 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0010 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.025 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Diameter (DCON) Tolerance (mm) | +0.0000/-0.0089 |
| Shank Type | Straight |
| Weldon Flat | No |
| Coolant Option | External Coolant |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 20 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Shipping Weight | 0.0010 |
| US Stock | 30 |
