18.00mm Dia, 3 Flute, Square End End Mill - 43575


SERIES: X5S
General Application End Mill
18.00mm Dia, 75.00mm LOC, 18.00mm Shank Dia, 3 Flute, 30 Degree Helix, Uncoated, Series X5S, Square End End Mill - 43575
List Price: $544.86
U.S. stocked items ship next day
Total Available U.S. :8
Series DescriptionGeneral Application End Mill
High PerformanceNo
End ConfigurationSquare End
Unit (inch/mm)mm
Number of Flutes3
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials

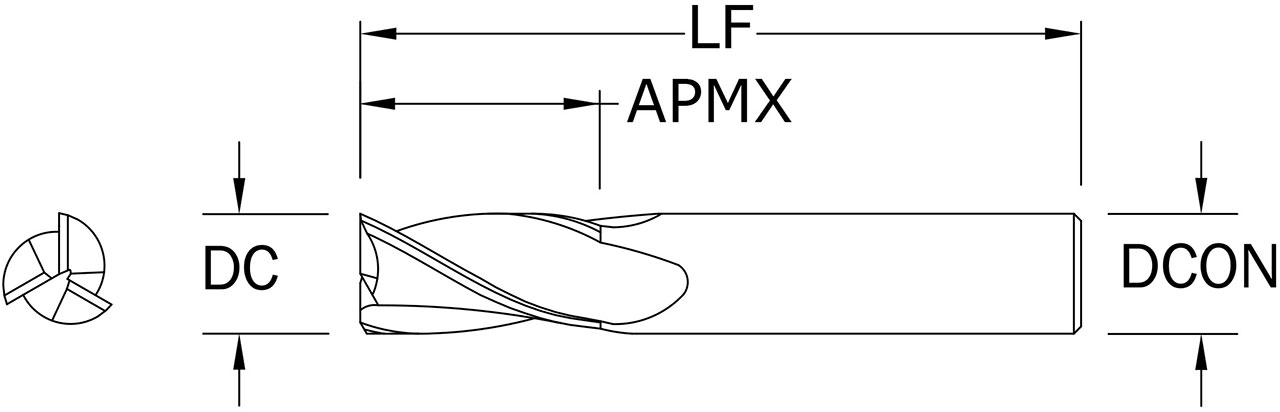

Cutting Diameter (DC) (Decimal Inch)0.7087
Cutting Diameter (DC) (mm)18.00
Shank Diameter (DCON) (Decimal Inch)0.7087
Shank Diameter (DCON) (mm)18.00
Length of Cut (APMX) (Decimal Inch)2.9528
Length of Cut (APMX) (mm)75.00
Overall Length (LF) (Decimal Inch)5.9055
Overall Length (LF) (mm)150.00
Shank Length (LS) (Decimal Inch)2.9570
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)h6
Shank TypeStraight
Coolant OptionExternal Coolant
Coating DescriptionBright/Uncoated
Additional GeometryRight Hand Cut Direction (RHC)
Rake AnglePositive
Helix AngleRight Spiral
Helix Angle (Degree)30
Variable HelixNo
Center CuttingYes
Chip BreakerNo
Shipping Weight1.0550
SeriesX5S
Weldon FlatNo
US Stock8
Shank Length (LS) (mm)75.11
Tool LengthExtra Long
