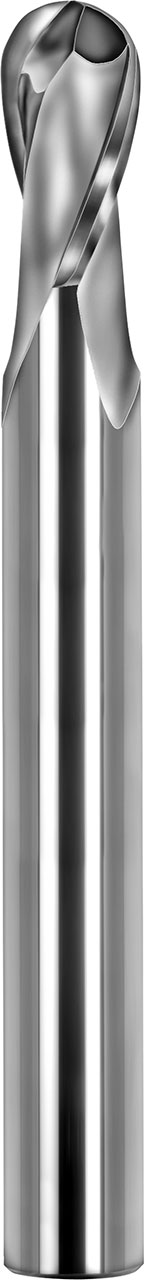

18.00mm Dia, 2 Flute, Ball Nose End Mill - 43908
SERIES: 59B
General Application End Mill
18.00mm Dia, 40.00mm LOC, 20.00mm Shank Dia, 2 Flute, 25 Degree Helix, Uncoated, Series 59B, Ball Nose End Mill - 43908
| Series Description | General Application End Mill |
|---|---|
| End Configuration | Ball Nose |
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

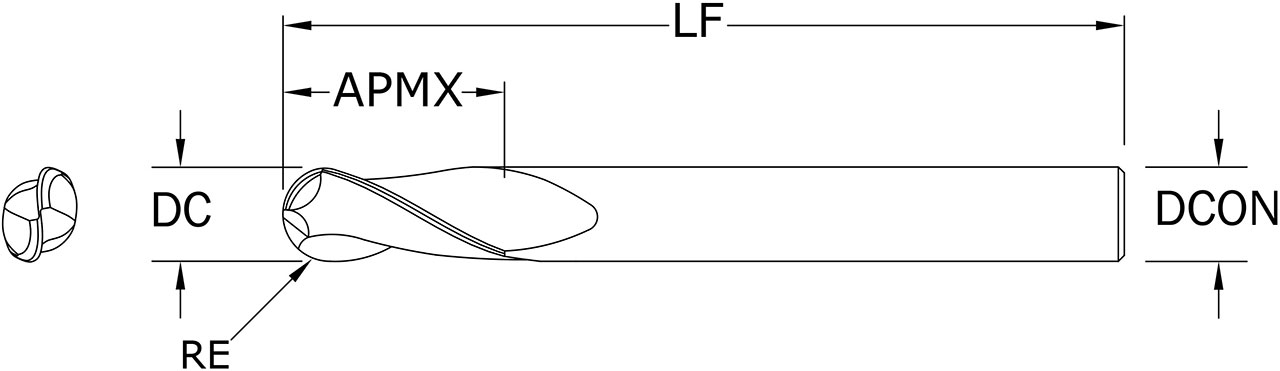

| Cutting Diameter (DC) (Decimal Inch) | 0.7087 |
| Cutting Diameter (DC) (mm) | 18.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.7874 |
| Shank Diameter (DCON) (mm) | 20.00 |
| Length of Cut (APMX) (Decimal Inch) | 1.5748 |
| Length of Cut (APMX) (mm) | 40.00 |
| Overall Length (LF) (Decimal Inch) | 5.1181 |
| Overall Length (LF) (mm) | 130.00 |
| Shank Length (LS) (Decimal Inch) | 3.5450 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0010 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.025 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 25 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 1.0810 |
| Series | 59B |
| Weldon Flat | No |
| US Stock | 3 |
| Shank Length (LS) (mm) | 90.04 |
| Tool Length | Regular |
| Coating Description | Bright/Uncoated |
| Flute Type | Spiral |
