16.00mm Dia, 2 Flute, Square End End Mill - 44537
SERIES: 44S
Ski-Carb
16.00mm Dia, 32.00mm LOC, 16.00mm Shank Dia, 2 Flute, 45 Degree Helix, Uncoated, Series 44S, Ski-Carb, Square End End Mill - 44537
Feature & Benefits
Polished ski land with primary and secondary flute wall design minimizes chip interference by directing chips away from secondary flute
Circular land allows for increased control at various speed and feed rates ultimately reducing chatter
Recommended for materials ≤ 150 Bhn (≤ 7 HRc)
| Series Description | Ski-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Secondary Workpiece Material | Plastics & Composites |

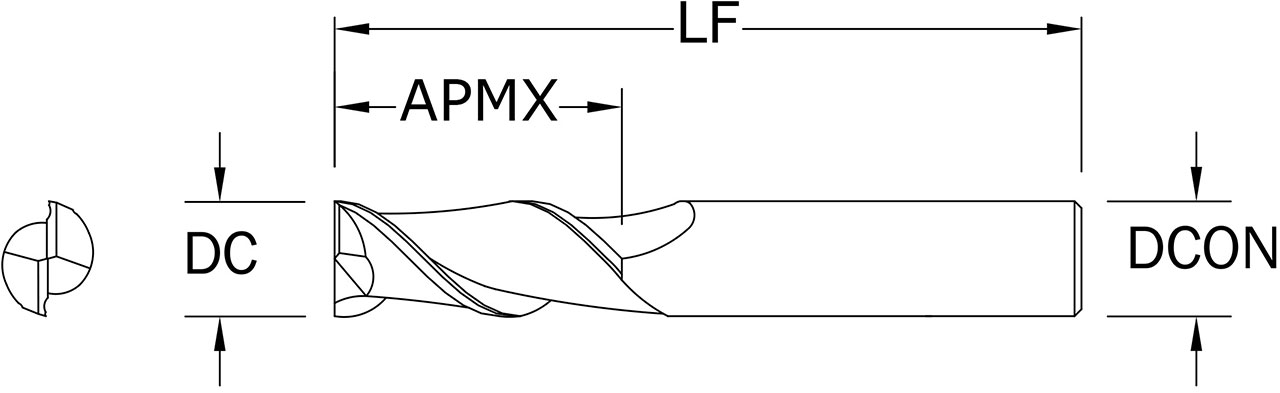

| Cutting Diameter (DC) (Decimal Inch) | 0.6299 |
| Cutting Diameter (DC) (mm) | 16.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.6299 |
| Shank Diameter (DCON) (mm) | 16.00 |
| Length of Cut (APMX) (Decimal Inch) | 1.2598 |
| Length of Cut (APMX) (mm) | 32.00 |
| Overall Length (LF) (Decimal Inch) | 3.6220 |
| Overall Length (LF) (mm) | 92.00 |
| Shank Length (LS) (Decimal Inch) | 2.3620 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.00043 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.011 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Weldon (Drive Flat) |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 45 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| DIN Standard (Shank) | DIN 6535 HB |
| Shipping Weight | 0.3490 |
| Series | 44S |
| Weldon Flat | Yes |
| US Stock | 9 |
| Shank Length (LS) (mm) | 59.99 |
| Tool Length | Stub |
| Coating Description | Bright/Uncoated |
| Flute Type | Spiral |
Alternate Products

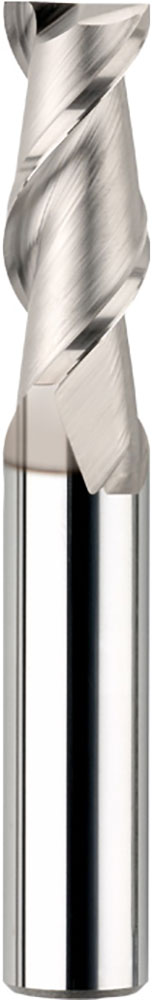

16.00mm Dia, 32.00mm LOC, 16.00mm Shank Dia, 2 Flute, 45 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 44S, Ski-Carb, Square End End Mill - 44538
U.S. stocked items ship next day
Total Available U.S. :0
16.00mm Dia, 32.00mm LOC, 16.00mm Shank Dia, 2 Flute, 35 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 47M, S-Carb, Square End End Mill - 44595
U.S. stocked items ship next day
Total Available U.S. :0

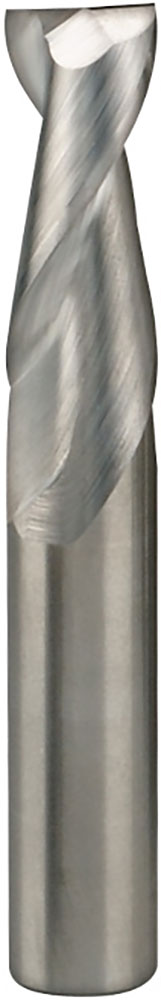

16.00mm Dia, 32.00mm LOC, 16.00mm Shank Dia, 2 Flute, 35 Degree Helix, Uncoated, Series 47M, S-Carb, Square End End Mill - 44558
