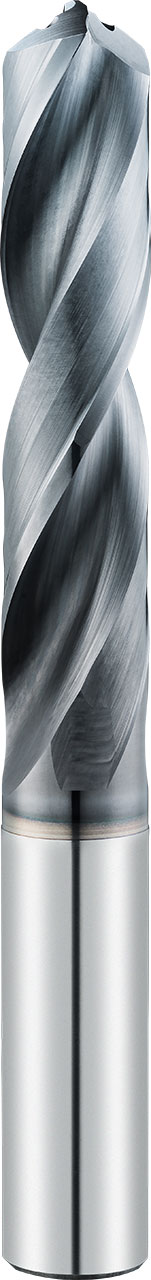

14.80mm Dia, 136 Degree Point, Solid Carbide Drill - 69218
SERIES: 143
Hi-PerCarb 143M-S
14.80mm Dia, 136 Degree Point, 16.00mm Shank Dia, 115.00mm OAL, 2 Flute, 3xD, Coolant-Through, Ti-NAMITE-A (AlTiN) Coated, Series 143, Hi-PerCarb 143M-S, Solid Carbide Drill - 69218
Feature & Benefits
Coolant through design improves coolant flow to extend tool life and aid in chip evacuation
Eccentric 2-margin design reduces frictional heat and minimizes material adhesion to the margins without weakening the drill
Computer controlled edge honing protects against chip damage
High-performance point design stabilizes on contact for exceptional hole size and cylindricity allowing for low thrust force and extended tool life
SGS Ti-NAMITE®-A coating provides exceptional wear and erosion resistance when drilling heat resisting alloys like Inconel, Stainless Steel, and Titanium Alloys
Recommended for materials ≤ 50HRc (475 Bhn)
| Series Description | Hi-PerCarb 143M-S |
|---|---|
| High Performance | Yes |
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (M) Stainless Steel|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (P) Steel|(K) Cast Iron |
| Reach (xD) | 3xD |
| Size | 14.80mm |

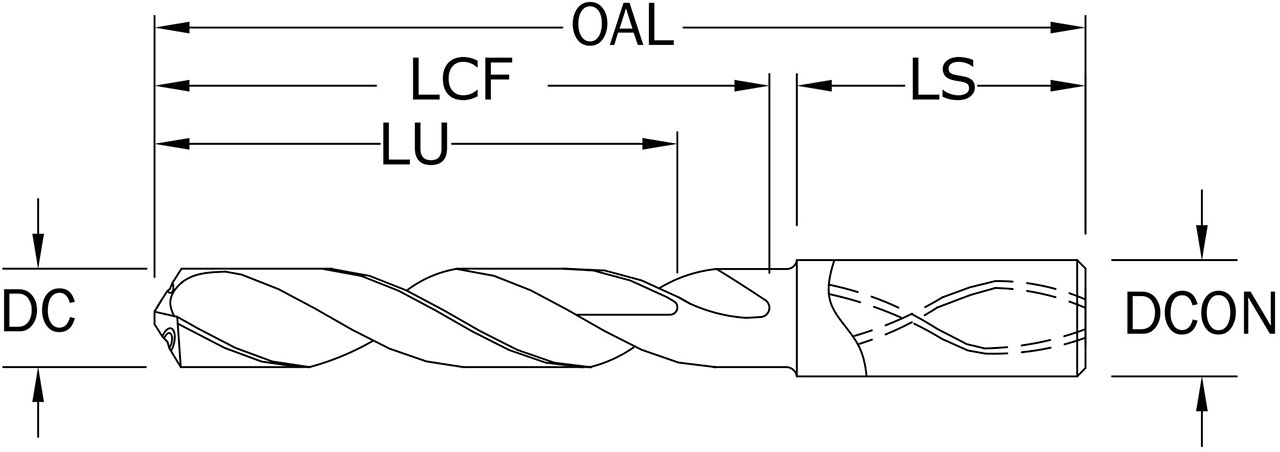

| Cutting Diameter (DC) (Decimal Inch) | 0.5827 |
| Cutting Diameter (DC) (mm) | 14.80 |
| Shank Diameter (DCON) (Decimal Inch) | 0.6299 |
| Shank Diameter (DCON) (mm) | 16.00 |
| Flute Length (LCF) (Decimal Inch) | 2.5591 |
| Flute Length (LCF) (mm) | 65.00 |
| Overall Length (OAL) (Decimal Inch) | 4.5276 |
| Overall Length (OAL) (mm) | 115.00 |
| Shank Length (LS) (Decimal Inch) | 1.8898 |
| Point Angle (Degree) | 136 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00028 / +.00098 |
| Cutting Diameter (DC) Tolerance (mm) | +.0071 / +.0251 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | Internal Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Center Cutting | No |
| DIN Standard | DIN 6537 |
| Number of Margins | 2 |
| Shipping Weight | 0.5090 |
| Series | 143 |
| US Stock | 22 |
| Self Centering | Yes |
| Shank Length (LS) (mm) | 48.00 |
| Usable Length (LU) (Decimal Inch) | 1.7717 |
| Usable Length (LU) (mm) | 45.00 |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Double Margins (Yes/No) | No |
| Flute Type | Spiral |
