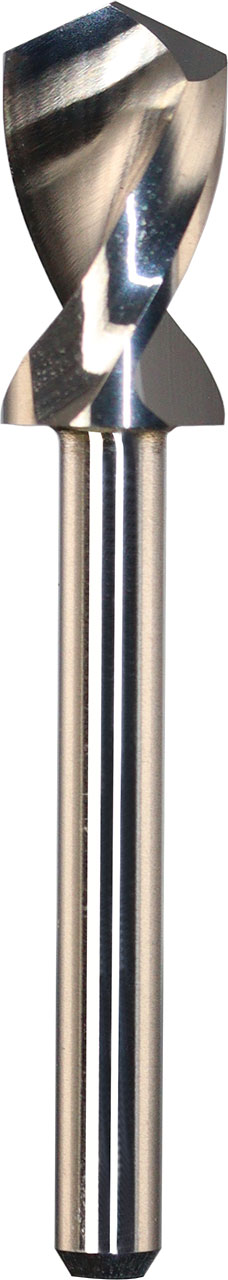

#14, 130 Degree Point, Solid Carbide Drill - 06117
SERIES: M155
Micro Drill - Inverse Diameter
#14, 130 Degree Point, 1/8" Shank Dia, 1-1/2" OAL, 2 Flute, Uncoated, Series M155, Micro - Inverse Diameter, Solid Carbide Drill - 06117
Feature & Benefits
4-Faceted point geometry provides centering assistance upon entry
Mirror Surface Finish is Applied to Allow for Smooth Chip Flow
Optimal End Geometry Ideal for Targeted Non-ferrous Materials
Manufactured in accordance with KSPT ISO certified quality procedures
Series Description | Micro Drill - Inverse Diameter |
---|---|
High Performance | No |
Unit (inch/mm) | inch |
Number of Flutes | 2 |
Primary Workpiece Material | (N) Non-Ferrous Materials |
Secondary Workpiece Material | (S) High Temp Alloy |
Size | #14 |

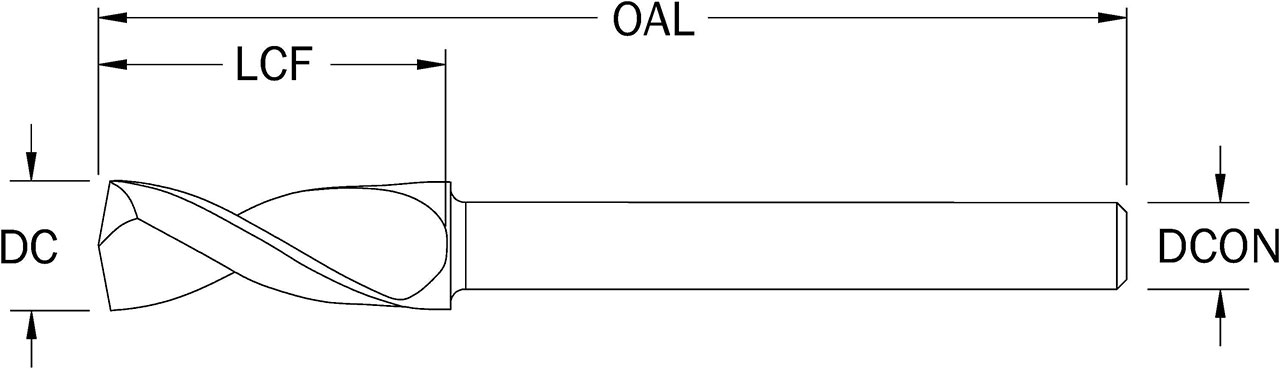

Cutting Diameter (DC) (Decimal Inch) | 0.1820 |
Cutting Diameter (DC) (mm) | 4.62 |
Cutting Diameter (DC) (Wire) | #14 |
Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
Shank Diameter (DCON) (mm) | 3.18 |
Usable Length (LU) (Fractional Inch) | 1/2 |
Flute Length (LCF) (Decimal Inch) | 0.5000 |
Flute Length (LCF) (Fractional Inch) | 1/2 |
Flute Length (LCF) (mm) | 12.70 |
Overall Length (OAL) (Decimal Inch) | 1.5000 |
Overall Length (OAL) (Fractional Inch) | 1-1/2 |
Overall Length (OAL) (mm) | 38.10 |
Shank Length (LS) (Decimal Inch) | 1.0000 |
Shank Length (LS) (Fractional Inch) | 1 |
Point Angle (Degree) | 130 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Shank Type | Straight |
Coolant Option | External Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 30 |
Variable Helix | No |
Center Cutting | No |
Chip Breaker | No |
Number of Margins | 1 |
KPT Micro Crossover (Old Material Number) | 8502182 |
KPT Micro Crossover (Part Number) | 155-1820.500 |
KPT Micro Crossover Type | Direct Match |
Shipping Weight | 0.0140 |
Series | M155 |
Weldon Flat | No |
US Stock | 150 |
Shank Length (LS) (mm) | 25.40 |
Shank Diameter (DCON) (Fractional Inch) | 1/8 |
Usable Length (LU) (Decimal Inch) | 0.5000 |
Usable Length (LU) (mm) | 12.70 |
Coating Description | Bright/Uncoated |
