14.00mm Dia, 4 Flute, Square End End Mill - 46506

SERIES: Z1MS

Z-Carb

14.00mm Dia, 26.00mm LOC, 14.00mm Shank Dia, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series Z1MS, Z-Carb, Square End End Mill - 46506

Feature & Benefits

One Of A Kind Geometry

Unequal Flute Spacing

Optimized Rake Angle

Enhanced Corner Geometry

Total Available U.S. :2

Series Description	Z-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	mm
Number of Flutes	4
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Cutting Diameter (DC) (Decimal Inch)	0.5512
Cutting Diameter (DC) (mm)	14.00
Shank Diameter (DCON) (Decimal Inch)	0.5512
Shank Diameter (DCON) (mm)	14.00
Length of Cut (APMX) (Decimal Inch)	1.0236
Length of Cut (APMX) (mm)	26.00
Overall Length (LF) (Decimal Inch)	3.2677
Overall Length (LF) (mm)	83.00
Shank Length (LS) (Decimal Inch)	2.2460
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight

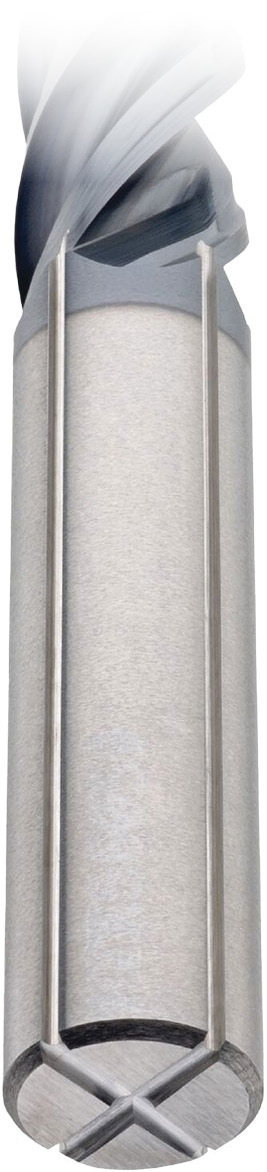

Coolant Option	JetStream Coolant Slots
Additional Geometry	Flute Spacing Unequal / Right Hand Cut Direction (RHC)
Rake Angle	Variable
Helix Angle	Variable Right Spiral
Helix Angle (Degree)	35-38
Variable Helix	Yes
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.3370
Series	Z1MS
Weldon Flat	No
US Stock	2
Shank Length (LS) (mm)	57.05
Tool Length	Stub
Coating Description	TX (Ti-NAMITE-X)
Flute Type	Spiral
