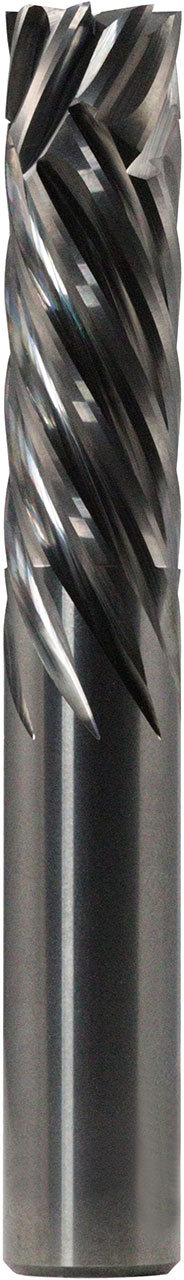

12.00mm Dia, 8 Flute, Router - 82997
SERIES: 25M
Series 25 - CFRP Compression Router
12.00mm Dia, 38.00mm LOC, 89.00mm OAL, 12.00mm Shank Dia, 8 Flute, 30 Degree Helix, Di-NAMITE (Diamond) Coated, Series 25M, Series 25 - CFRP Compression Router - 82997
Feature & Benefits
Left Hand Helix
Right Hand Helix
| Series Description | Series 25 - CFRP Compression Router |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Tool Length | Long |
| Unit (inch/mm) | mm |
| Number of Flutes | 8 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |

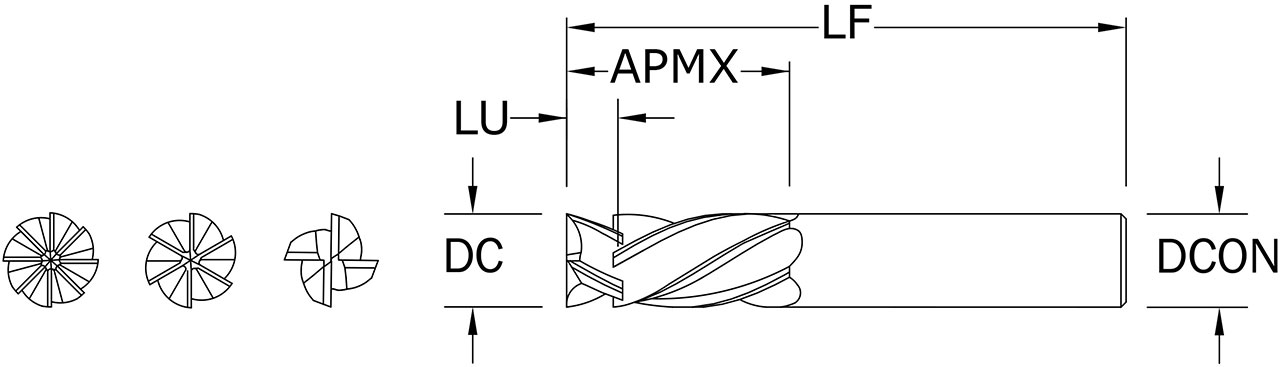

| Cutting Diameter (DC) (Decimal Inch) | 0.4724 |
| Cutting Diameter (DC) (mm) | 12.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.4724 |
| Shank Diameter (DCON) (mm) | 12.00 |
| Length of Cut (APMX) (Decimal Inch) | 1.4961 |
| Length of Cut (APMX) (mm) | 38.00 |
| Overall Length (LF) (Decimal Inch) | 3.5039 |
| Overall Length (LF) (mm) | 89.00 |
| Shank Length (LS) (Decimal Inch) | 2.0079 |
| Split Length (SPTL) (Decimal Inch) | 0.3386 |
| Split Length (SPTL) (mm) | 8.60 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0030 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.080 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| KPT Micro Crossover (Old Material Number) | 8522446 |
| KPT Micro Crossover (Part Number) | 1890-4724V1496 |
| Shipping Weight | 0.3060 |
| Series | 25M |
| US Stock | 0 |
| Shank Length (LS) (mm) | 51.00 |
| Coating Description | Diamond (Di-NAMITE) |
| Flute Type | Spiral |
