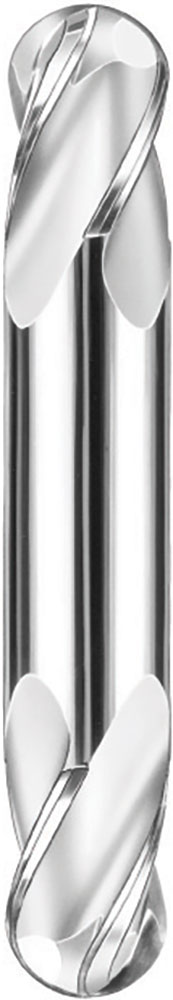

12.00mm Dia, 4 Flute, Ball Nose End Mill - 41466

SERIES: 14B

General Application End Mill - Double-End

12.00mm Dia, 16.00mm LOC, 12.00mm Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series 14B, Double-End, Ball Nose End Mill - 41466

Total Available U.S. :21

Series Description	General Application End Mill - Double-End
End Configuration	Ball Nose
Unit (inch/mm)	mm
Number of Flutes	4
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(N) Non-Ferrous Materials\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Cutting Diameter (DC) (Decimal Inch)	0.4724
Cutting Diameter (DC) (mm)	12.00
Shank Diameter (DCON) (Decimal Inch)	0.4724
Shank Diameter (DCON) (mm)	12.00
Length of Cut (APMX) (Decimal Inch)	0.6299
Length of Cut (APMX) (mm)	16.00
Overall Length (LF) (Decimal Inch)	2.9528
Overall Length (LF) (mm)	75.00
Shank Length (LS) (Decimal Inch)	2.3200
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)	h6
Corner Radius (RE) Tolerance (Decimal Inch)	+0.0000/-0.0010
Corner Radius (RE) Tolerance (mm)	+0.000/-0.025
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.2240
Series	14B
Weldon Flat	No
US Stock	21
Shank Length (LS) (mm)	58.93
Tool Length	Stub
Coating Description	Bright/Uncoated
Flute Type	Spiral

Alternate Products

12.00mm Dia, 16.00mm LOC, 12.00mm Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 14B, Double-End, Ball Nose End Mill - 49004

Total Available U.S. :3
