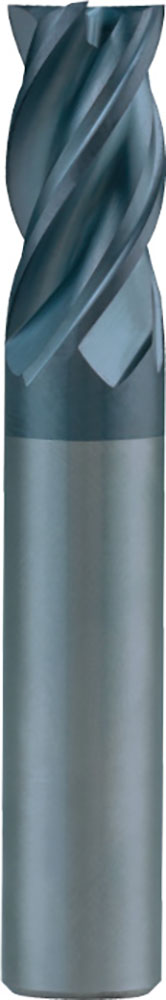

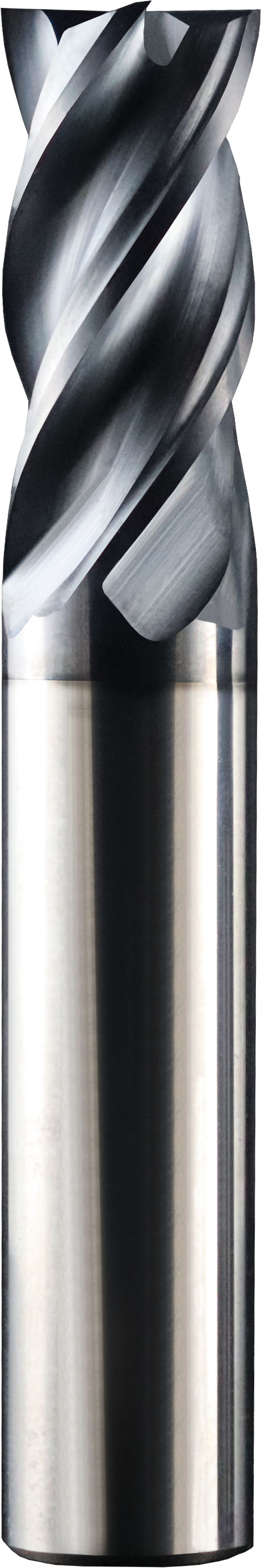

11/32" Dia, 4 Flute, Square End End Mill - 36422

SERIES: Z1S

Z-Carb

11/32" Dia, 0.8130" LOC, 3/8" Shank Dia, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series Z1S, Z-Carb, Square End End Mill - 36422

Feature & Benefits

Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level

Unequal helix design changes the cutting angle to improve harmonics

Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics

Enhanced corner geometry with tight tolerance corner radii

Recommended for materials ≤ 45 HRc (≤ 420 Bhn)

Total Available U.S. :63

Series Description	Z-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	inch
Number of Flutes	4
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Cutting Diameter (DC) (Decimal Inch)	0.3438
Cutting Diameter (DC) (Fractional Inch)	11/32
Cutting Diameter (DC) (mm)	8.73
Shank Diameter (DCON) (Decimal Inch)	0.3750
Shank Diameter (DCON) (mm)	9.53
Length of Cut (APMX) (Decimal Inch)	0.8130
Length of Cut (APMX) (mm)	20.65
Overall Length (LF) (Decimal Inch)	2.5000
Overall Length (LF) (Fractional Inch)	2-1/2
Overall Length (LF) (mm)	63.50
Shank Length (LS) (Decimal Inch)	1.6870
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0016
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.040
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Variable
Helix Angle	Variable Right Spiral
Helix Angle (Degree)	35-38
Variable Helix	Yes
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.0880
Series	Z1S
Weldon Flat	No
US Stock	63
Shank Length (LS) (mm)	42.85
Shank Diameter (DCON) (Fractional Inch)	3/8
Tool Length	Regular
Coating Description	TX (Ti-NAMITE-X)
Flute Type	Spiral
