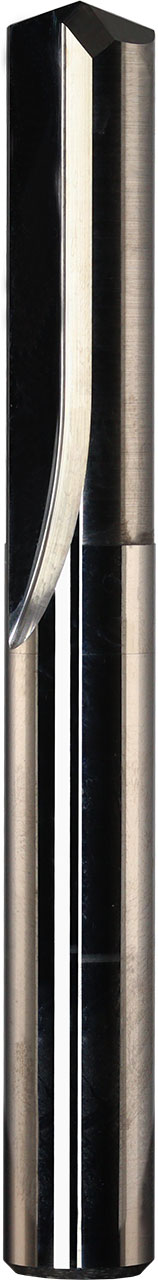

10.00mm Dia, 140 Degree Point, Solid Carbide Drill - 66035
SERIES: 106
General Application Drill - Straight Flute
10.00mm Dia, 140 Degree Point, 10.00mm Shank Dia, 89.00mm OAL, 2 Flute, 3xD, Uncoated, Series 106, Straight Flute, Solid Carbide Drill - 66035
| Series Description | General Application Drill - Straight Flute |
|---|---|
| High Performance | No |
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(K) Cast Iron |
| Secondary Workpiece Material | (H) Hardened Materials |
| Reach (xD) | 3xD |
| Size | 10.00mm |
| Cutting Diameter (DC) (Decimal Inch) | 0.3937 |
| Cutting Diameter (DC) (mm) | 10.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3937 |
| Shank Diameter (DCON) (mm) | 10.00 |
| Flute Length (LCF) (Decimal Inch) | 1.6929 |
| Flute Length (LCF) (mm) | 43.00 |
| Overall Length (OAL) (Decimal Inch) | 3.5039 |
| Overall Length (OAL) (mm) | 89.00 |
| Shank Length (LS) (Decimal Inch) | 1.8770 |
| Point Angle (Degree) | 140 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00000 / -.00050 |
| Cutting Diameter (DC) Tolerance (mm) | +.0000 / -.0127 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 0 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| DIN Standard | DIN 6539 |
| Number of Margins | 2 |
| Shipping Weight | 0.2040 |
| Series | 106 |
| Weldon Flat | No |
| US Stock | 17 |
| Shank Length (LS) (mm) | 47.68 |
| Usable Length (LU) (Decimal Inch) | 1.2205 |
| Usable Length (LU) (mm) | 31.00 |
| Coating Description | Bright/Uncoated |
