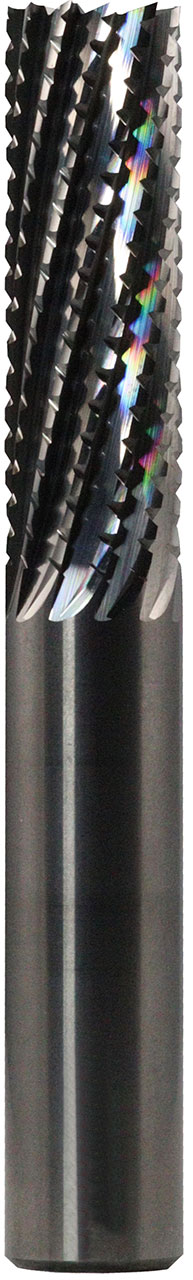

10.00mm Dia, 12 Flute, Router - 83225


SERIES: 20
Series CCR CFRP Router
10.00mm Dia, 28.00mm LOC, 63.00mm OAL, 10.00mm Shank Dia, 12 Flute, 45 Degree Helix, Uncoated, Series 20, Series CCR CFRP Router - 83225
Feature & Benefits
Multi-Flute Design
Unique Clearance Grind
Left Hand Cutting Available
Available With Or Without End Cut
U.S. stocked items ship next day
Total Available U.S. :13
Series DescriptionSeries CCR CFRP Router
High PerformanceYes
End ConfigurationSquare End
Tool LengthRegular
Unit (inch/mm)mm
Number of Flutes12
Primary Workpiece Material(N) Non-Ferrous Materials
Cutting Diameter (DC) (Decimal Inch)0.3937
Cutting Diameter (DC) (mm)10.00
Shank Diameter (DCON) (Decimal Inch)0.3937
Shank Diameter (DCON) (mm)10.00
Length of Cut (APMX) (Decimal Inch)1.1024
Length of Cut (APMX) (mm)28.00
Overall Length (LF) (Decimal Inch)2.4803
Overall Length (LF) (mm)63.00
Shank Length (LS) (Decimal Inch)1.3780
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0050
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.130
Shank Diameter (DCON) Tolerance (ISO)h6
Shank TypeStraight
Coolant OptionExternal Coolant
Additional GeometryLeft Hand Cut Direction (LHC)
Rake AnglePositive
Helix AngleLeft Spiral
Helix Angle (Degree)45
Variable HelixNo
Center CuttingYes
Chip BreakerNo
Shipping Weight0.1310
Series20
Weldon FlatNo
US Stock13
Shank Length (LS) (mm)35.00
Coating DescriptionBright/Uncoated
