1.95mm Dia, 130 Degree Point, Solid Carbide Drill - 07354
SERIES: M105
Micro Drill
1.95mm Dia, 130 Degree Point, 3.18mm Shank Dia, 38.10mm OAL, 2 Flute, Uncoated, Series M105, Micro, Solid Carbide Drill - 07354
Feature & Benefits
4-facet point design stabilizes on entry for superior hole size control and tool life
Mirror surface finishes improve chip flow as hole depth increases
Ti-Namite A coating and uncoated options for the ultimate performance in a variety of ferrous and non-ferrous workpiece materials
Application specific sub-micron grain carbide designed specifically for micro tool applications
Manufactured in accordance with KSPT ISO certified quality procedures
| Series Description | Micro Drill |
|---|---|
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Size | 1.95mm |

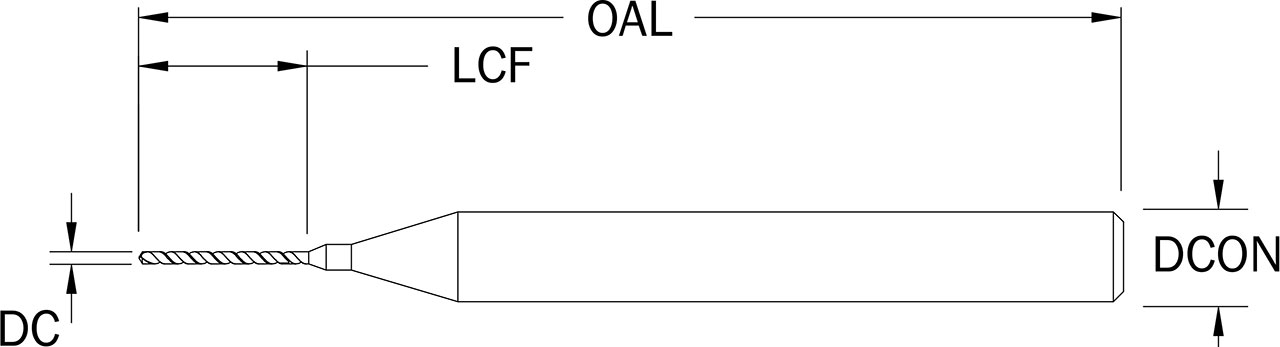

| Cutting Diameter (DC) (Decimal Inch) | 0.0768 |
| Cutting Diameter (DC) (mm) | 1.95 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
| Shank Diameter (DCON) (mm) | 3.18 |
| Flute Length (LCF) (Decimal Inch) | 0.4000 |
| Flute Length (LCF) (mm) | 10.16 |
| Overall Length (OAL) (Decimal Inch) | 1.5000 |
| Overall Length (OAL) (Fractional Inch) | 1-1/2 |
| Overall Length (OAL) (mm) | 38.10 |
| Point Angle (Degree) | 130 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00000 / -.00030 |
| Cutting Diameter (DC) Tolerance (mm) | +.0000 / -.0076 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 33 |
| Center Cutting | No |
| Number of Margins | 1 |
| KPT Micro Crossover (Old Material Number) | 8501091 |
| KPT Micro Crossover (Part Number) | 105-0768.400 |
| KPT Micro Crossover Type | Direct Match |
| Shipping Weight | 0.0105 |
| Series | M105 |
| US Stock | 227 |
| Profile Angle (Degree) | 15 |
| Shank Diameter (DCON) (Fractional Inch) | 1/8 |
| Coating Description | Bright/Uncoated |
| Double Margins (Yes/No) | No |
| Flute Type | Spiral |
| Usable Length (LU) (Decimal Inch) | 0.2848 |
| Usable Length (LU) (mm) | 7.23 |
