1/8" Dia, 0.0450" Tip, 90 Degree, 3 Flute, Countersink - 74225
SERIES: 603
General Application Countersink

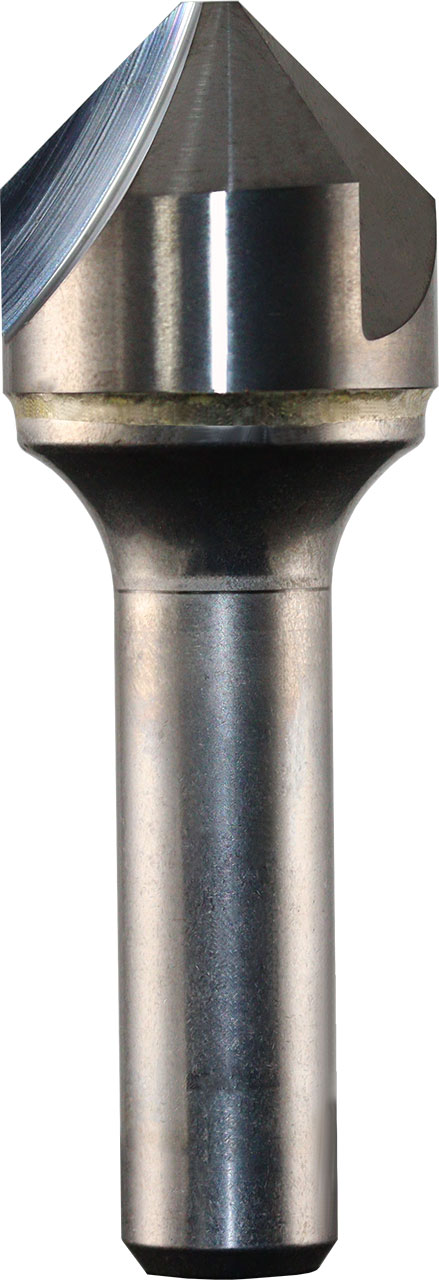

1/8" Dia, 0.0450" Tip, 90 Degree, 3 Flute, 1/8" Shank Dia, Uncoated, Series 603, General Application Countersink - 74225
| Series Description | General Application Countersink |
|---|---|
| Unit (inch/mm) | inch |
| Number of Flutes | 3 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Size | 1/8" |

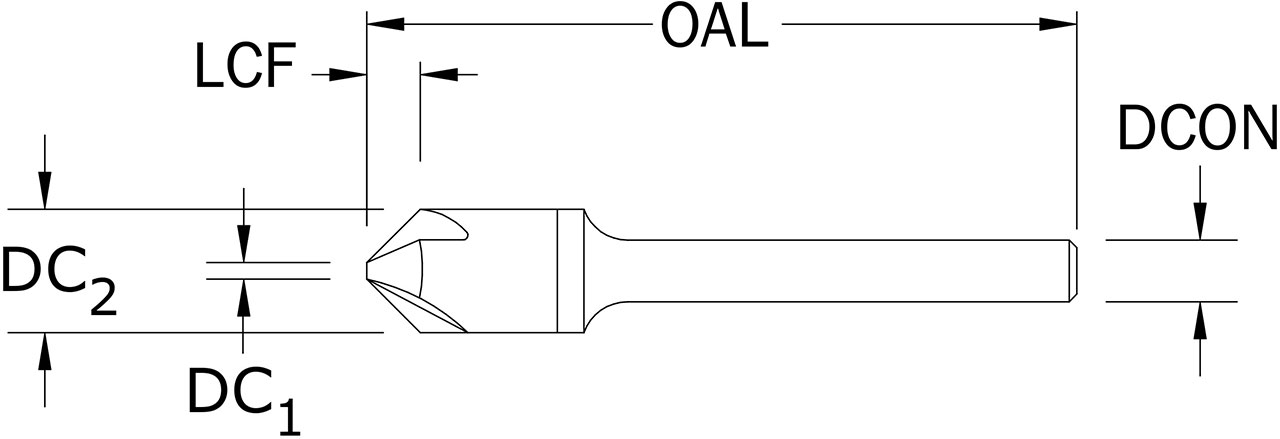

| Tip Diameter (DC1) (Decimal Inch) | 0.0450 |
| Tip Diameter (DC1) (mm) | 1.14 |
| Cutting Diameter (DC2) (Decimal Inch) | 0.1250 |
| Cutting Diameter (DC2) (Fractional Inch) | 1/8 |
| Cutting Diameter (DC2) (mm) | 3.18 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
| Shank Diameter (DCON) (mm) | 3.18 |
| Flute Length (LCF) (Decimal Inch) | 0.0400 |
| Flute Length (LCF) (Fractional Inch) | 1/8 |
| Flute Length (LCF) (mm) | 1.02 |
| Overall Length (OAL) (Decimal Inch) | 1.5000 |
| Overall Length (OAL) (Fractional Inch) | 1-1/2 |
| Overall Length (OAL) (mm) | 38.10 |
| Shank Length (LS) (Decimal Inch) | 1.2500 |
| Shank Length (LS) (Fractional Inch) | 1-1/4 |
| Point Angle (Degree) | 90 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00000 / -.00050 |
| Cutting Diameter (DC) Tolerance (mm) | +.0000 / -.0127 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Neutral |
| Helix Angle (Degree) | 0 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Number of Margins | 1 |
| Shipping Weight | 0.0120 |
| Series | 603 |
| Weldon Flat | No |
| US Stock | 14 |
| Shank Length (LS) (mm) | 31.75 |
| Shank Diameter (DCON) (Fractional Inch) | 1/8 |
| Coating Description | Bright/Uncoated |
| Included Angle (Degree) | +1 / -1 |
| Self Centering | Yes |
| Product Notes | DC1 dimension varies based on angle. Contact your KSPT representative for dimension information. |
| Double Margins (Yes/No) | No |
| Flute Type | Straight |
