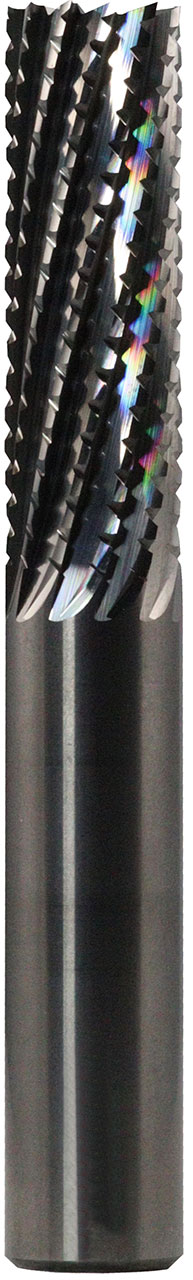

1/4" Dia, 8 Flute, Router - 72947
SERIES: 20
Series CCR CFRP Router
1/4" Dia, 1" LOC, 2-1/2" OAL, 1/4" Shank Dia, 8 Flute, 15 Degree Helix, Uncoated, Series 20, Series CCR CFRP Router - 72947
Feature & Benefits
Multi-Flute Design
Unique Clearance Grind
Left Hand Cutting Available
Available With Or Without End Cut
| Series Description | Series CCR CFRP Router |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Tool Length | Regular |
| Unit (inch/mm) | inch |
| Number of Flutes | 8 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.2500 |
| Cutting Diameter (DC) (Fractional Inch) | 1/4 |
| Cutting Diameter (DC) (mm) | 6.35 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2500 |
| Shank Diameter (DCON) (mm) | 6.35 |
| Length of Cut (APMX) (Decimal Inch) | 1.0000 |
| Length of Cut (APMX) (Fractional Inch) | 1 |
| Length of Cut (APMX) (mm) | 25.40 |
| Overall Length (LF) (Decimal Inch) | 2.5000 |
| Overall Length (LF) (Fractional Inch) | 2-1/2 |
| Overall Length (LF) (mm) | 63.50 |
| Shank Length (LS) (Decimal Inch) | 1.1250 |
| Shank Length (LS) (Fractional Inch) | 1-1/8 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0050 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.130 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 15 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0610 |
| Series | 20 |
| Weldon Flat | No |
| US Stock | 126 |
| Shank Length (LS) (mm) | 28.58 |
| Shank Diameter (DCON) (Fractional Inch) | 1/4 |
| Coating Description | Bright/Uncoated |
