1/4" Dia, 5 Flute, Chip Breaker Square End Mill - 37783
SERIES: Z5S
Z-Carb-HPR
1/4" Dia, 1/2" LOC, 1" Reach, 1/4" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5S, Z-Carb-HPR, Chip Breaker Square End Mill - 37783

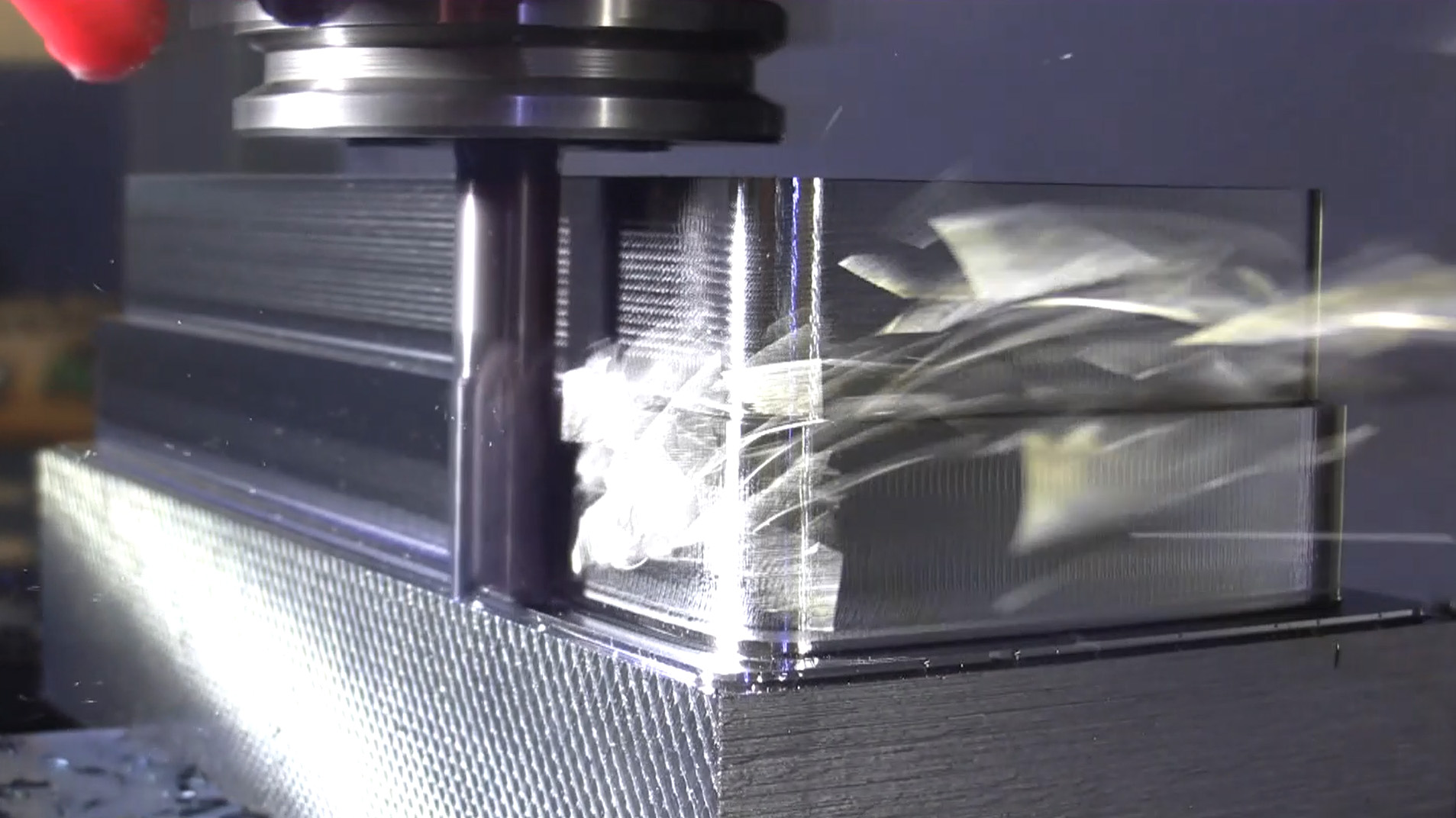

Feature & Benefits
Positive Radial Rake
Variable Flute Pattern
Open Center Design
Long Reach

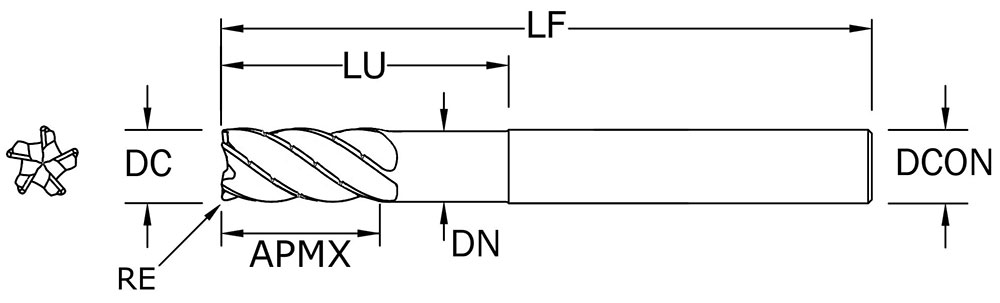

| Series Description | Z-Carb-HPR |
|---|---|
| High Performance | Yes |
| End Configuration | Chip Breaker (Square) |
| Tool Length | Long Reach Neck |
| Unit (inch/mm) | inch |
| Number of Flutes | 5 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.2500 |
| Cutting Diameter (DC) (Fractional Inch) | 1/4 |
| Cutting Diameter (DC) (mm) | 6.35 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2500 |
| Shank Diameter (DCON) (mm) | 6.35 |
| Length of Cut (APMX) (Decimal Inch) | 0.5000 |
| Length of Cut (APMX) (Fractional Inch) | 1/2 |
| Length of Cut (APMX) (mm) | 12.70 |
| Reach (LU) (Decimal Inch) | 1.0000 |
| Reach (LU) (Fractional Inch) | 1 |
| Reach (LU) (mm) | 25.40 |
| Overall Length (LF) (Decimal Inch) | 3.0000 |
| Overall Length (LF) (Fractional Inch) | 3 |
| Overall Length (LF) (mm) | 76.20 |
| Neck Diameter (DN) (Decimal Inch) | 0.2380 |
| Neck Diameter (DN) (mm) | 6.05 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.0880 |
| Non-Cutting Center Diameter (NCD) (mm) | 2.24 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0012 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.030 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | Yes |
| Shipping Weight | 0.0700 |
| Series | Z5S |
| Weldon Flat | No |
| US Stock | 8 |
| Shank Diameter (DCON) (Fractional Inch) | 1/4 |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Flute Type | Spiral |
Alternate Products
1/4" Dia, 1/2" LOC, 1" Reach, 1/4" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 37782
U.S. stocked items ship next day
Total Available U.S. :0

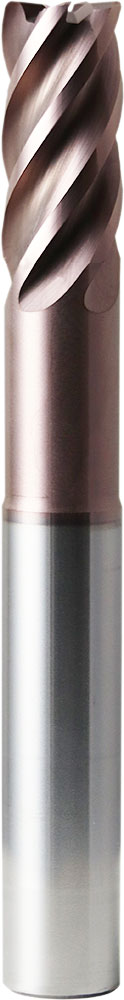

1/4" Dia, 1/2" LOC, 1" Reach, 1/4" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 37784
U.S. stocked items ship next day
Total Available U.S. :9

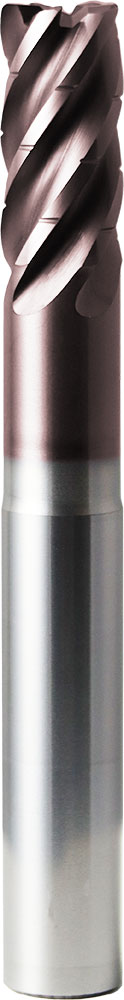

1/4" Dia, 1/2" LOC, 1" Reach, 1/4" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5S, Z-Carb-HPR, Chip Breaker Square End Mill - 37785
