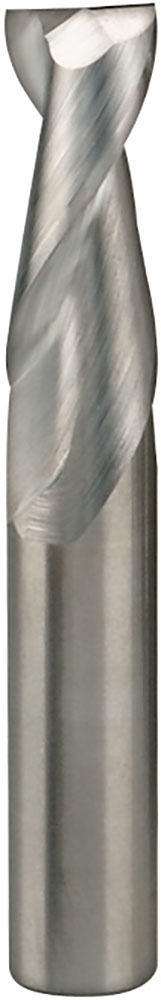

1/4" Dia, 2 Flute, Square End End Mill - 34622

SERIES: 47

S-Carb

1/4" Dia, 3/4" LOC, 1/4" Shank Dia, 2 Flute, 35 Degree Helix, Uncoated, Series 47, S-Carb, Square End End Mill - 34622

Feature & Benefits

Circular land reduces edge aggressiveness for varied speed and feed rates

2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process

Excellent balance at high speeds and aggressive plunging capability

Recommended for materials ≤ 150 Bhn (≤ 7 HRc)

Total Available U.S. :69

Series Description	S-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	inch
Number of Flutes	2
Primary Workpiece Material	(N) Non-Ferrous Materials
Secondary Workpiece Material	Plastics & Composites
Cutting Diameter (DC) (Decimal Inch)	0.2500
Cutting Diameter (DC) (Fractional Inch)	1/4
Cutting Diameter (DC) (mm)	6.35
Shank Diameter (DCON) (Decimal Inch)	0.2500
Shank Diameter (DCON) (mm)	6.35
Length of Cut (APMX) (Decimal Inch)	0.7500
Length of Cut (APMX) (Fractional Inch)	3/4
Length of Cut (APMX) (mm)	19.05
Overall Length (LF) (Decimal Inch)	2.5000
Overall Length (LF) (Fractional Inch)	2-1/2
Overall Length (LF) (mm)	63.50
Shank Length (LS) (Decimal Inch)	1.7500
Shank Length (LS) (Fractional Inch)	1-3/4
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.00035
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.009
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	35
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.0580
Series	47
Weldon Flat	No
US Stock	69
Shank Length (LS) (mm)	44.45
Shank Diameter (DCON) (Fractional Inch)	1/4
Tool Length	Long
Coating Description	Bright/Uncoated
Flute Type	Spiral
