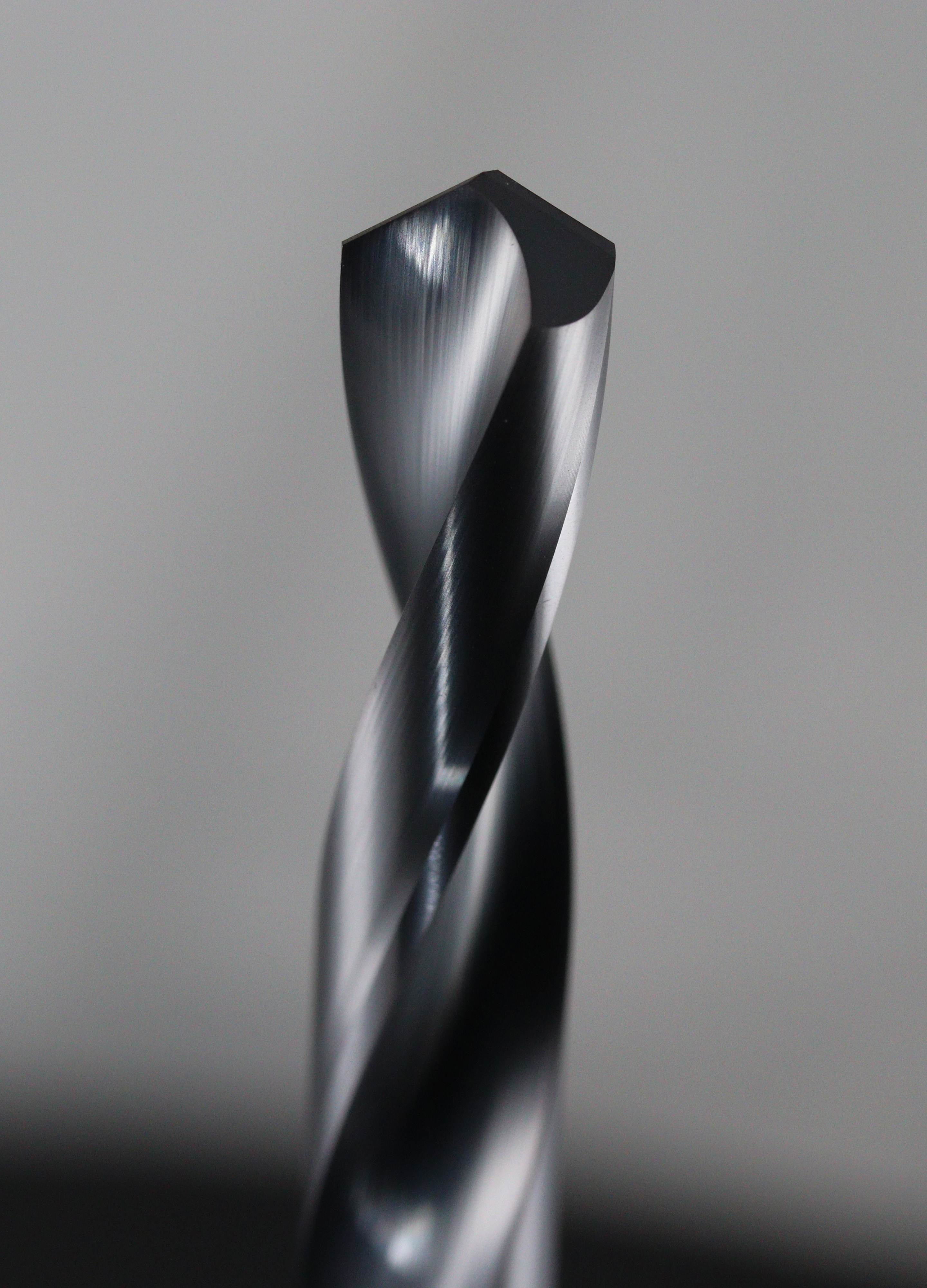

1/4" Dia, 118 Degree Point, Solid Carbide Drill - 51116


SERIES: 101
General Application Drill
1/4" Dia, 118 Degree Point, 1/4" Shank Dia, 3-1/4" OAL, 2 Flute, Uncoated, Series 101, Solid Carbide Drill - 51116
U.S. stocked items ship next day
Total Available U.S. :529
Series101
Series DescriptionGeneral Application Drill
High PerformanceNo
Unit (inch/mm)inch
Number of Flutes2
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials
Size1/4"
Cutting Diameter (DC) (Decimal Inch)0.2500
Cutting Diameter (DC) (Fractional Inch)1/4
Cutting Diameter (DC) (mm)6.35
Shank Diameter (DCON) (Decimal Inch)0.2500
Shank Diameter (DCON) (mm)6.35
Flute Length (LCF) (Decimal Inch)2.0000
Flute Length (LCF) (mm)50.80
Overall Length (OAL) (Decimal Inch)3.2500
Overall Length (OAL) (Fractional Inch)3-1/4
Overall Length (OAL) (mm)82.55
Shank Length (LS) (Decimal Inch)1.2500
Shank Length (LS) (mm)31.75
Point Angle (Degree)118
Cutting Diameter (DC) Tolerance (Decimal Inch)+.00000 / -.00050
Cutting Diameter (DC) Tolerance (mm)+.0000 / -.0127
Shank Diameter (DCON) Tolerance (ISO)h6
Shank TypeStraight
Weldon FlatNo
Coolant OptionExternal Coolant
Additional GeometryRight Hand Cut Direction (RHC)
Helix AngleRight Spiral
Helix Angle (Degree)20
Variable HelixNo
Center CuttingNo
Chip BreakerNo
Number of Margins2
Shipping Weight0.0660
US Stock529
Shank Diameter (DCON) (Fractional Inch)1/4
Usable Length (LU) (Decimal Inch)1.6094
Usable Length (LU) (mm)40.88
Reach (xD)5xD
Coating DescriptionBright/Uncoated
