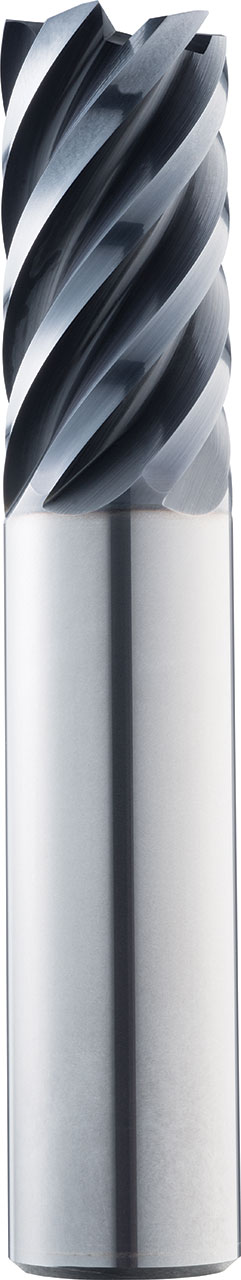

1/2" Dia, 6 Flute, Square End End Mill - 35102

SERIES: 51S

T-Carb

1/2" Dia, 1-1/4" LOC, 1/2" Shank Dia, 6 Flute, 41 Degree Helix, Ti-NAMITE-X (TX) Coated, Series 51S, T-Carb, Square End End Mill - 35102

Feature & Benefits

Engineered for High Speed Milling using Trochoidal and Peel Milling techniques

Eccentric relief provides superior strength and smoother surface finish

Enhanced corner geometry with tight tolerance corner radii

Recommended for materials ≤ 45 HRc (≤ 420 Bhn)

Total Available U.S. :167

Series Description	T-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	inch
Number of Flutes	6
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials

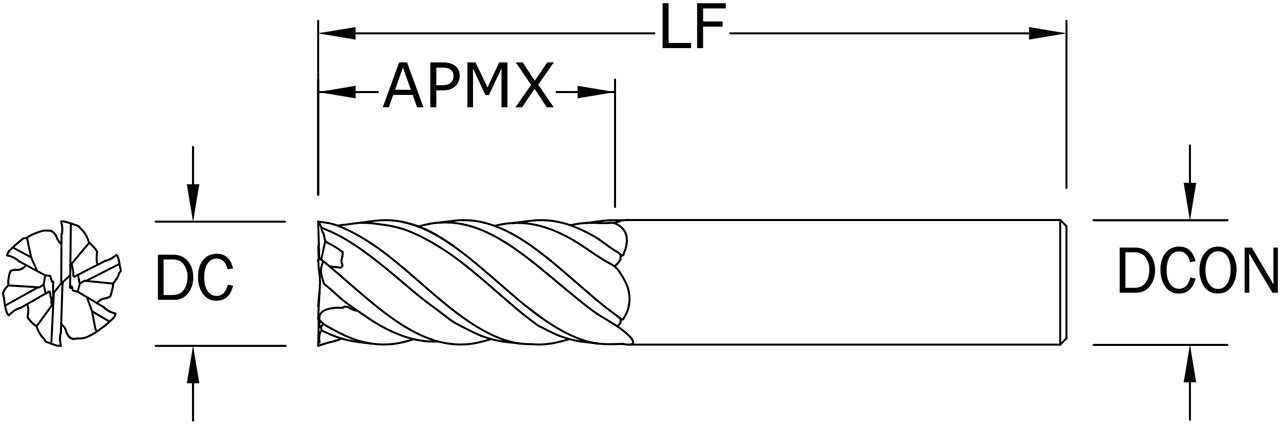

Cutting Diameter (DC) (Decimal Inch)	0.5000
Cutting Diameter (DC) (Fractional Inch)	1/2
Cutting Diameter (DC) (mm)	12.70
Shank Diameter (DCON) (Decimal Inch)	0.5000
Shank Diameter (DCON) (mm)	12.70
Length of Cut (APMX) (Decimal Inch)	1.2500
Length of Cut (APMX) (Fractional Inch)	1-1/4
Length of Cut (APMX) (mm)	31.75
Overall Length (LF) (Decimal Inch)	3.0000
Overall Length (LF) (Fractional Inch)	3
Overall Length (LF) (mm)	76.20
Shank Length (LS) (Decimal Inch)	1.7500
Shank Length (LS) (Fractional Inch)	1-3/4
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	41
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.2720
Series	51S
Weldon Flat	No
US Stock	167
Shank Length (LS) (mm)	44.45
Shank Diameter (DCON) (Fractional Inch)	1/2
Tool Length	Regular
Coating Description	TX (Ti-NAMITE-X)
Flute Type	Spiral
