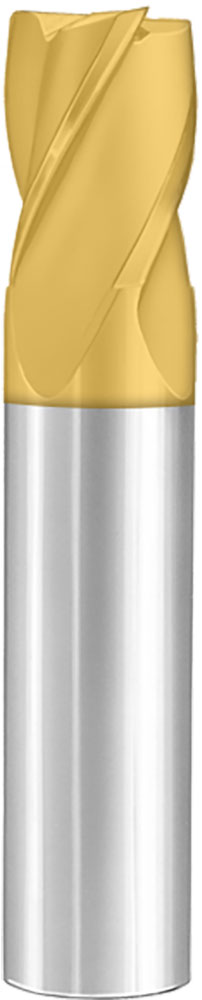

1/16" Dia, 4 Flute, Square End End Mill - 31650
SERIES: 16S
General Application End Mill
1/16" Dia, 1/8" LOC, 1/8" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE (TiN) Coated, Series 16S, Square End End Mill - 31650
Series Description | General Application End Mill |
---|---|
High Performance | No |
End Configuration | Square End |
Unit (inch/mm) | inch |
Number of Flutes | 4 |
Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
Secondary Workpiece Material | (H) Hardened Materials |
Cutting Diameter (DC) (Decimal Inch) | 0.0625 |
Cutting Diameter (DC) (Fractional Inch) | 1/16 |
Cutting Diameter (DC) (mm) | 1.59 |
Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
Shank Diameter (DCON) (mm) | 3.18 |
Length of Cut (APMX) (Decimal Inch) | 0.1250 |
Length of Cut (APMX) (Fractional Inch) | 1/8 |
Length of Cut (APMX) (mm) | 3.18 |
Overall Length (LF) (Decimal Inch) | 1.5000 |
Overall Length (LF) (Fractional Inch) | 1-1/2 |
Overall Length (LF) (mm) | 38.10 |
Shank Length (LS) (Decimal Inch) | 1.3750 |
Shank Length (LS) (Fractional Inch) | 1-3/8 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Shank Type | Straight |
Coolant Option | External Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Rake Angle | Positive |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 30 |
Variable Helix | No |
Center Cutting | Yes |
Chip Breaker | No |
Shipping Weight | 0.0070 |
Series | 16S |
Weldon Flat | No |
US Stock | 219 |
Shank Length (LS) (mm) | 34.93 |
Shank Diameter (DCON) (Fractional Inch) | 1/8 |
Tool Length | Stub |
Coating Description | TiN (Ti-NAMITE) |
