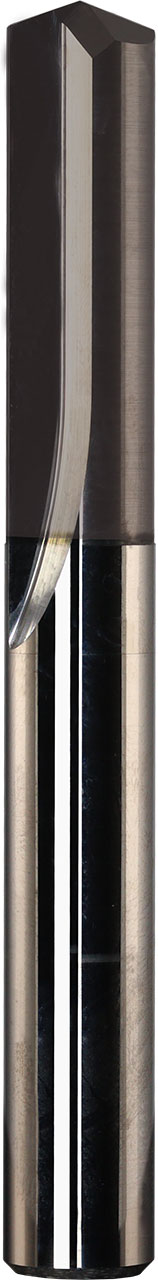

1.00mm Dia, 140 Degree Point, Solid Carbide Drill - 66002
SERIES: 106
General Application Drill - Straight Flute
1.00mm Dia, 140 Degree Point, 1.00mm Shank Dia, 26.00mm OAL, 2 Flute, 3xD, Ti-NAMITE-A (AlTiN) Coated, Series 106, Straight Flute, Solid Carbide Drill - 66002
Series Description | General Application Drill - Straight Flute |
---|---|
High Performance | No |
Unit (inch/mm) | mm |
Number of Flutes | 2 |
Primary Workpiece Material | (P) Steel|(K) Cast Iron |
Secondary Workpiece Material | (H) Hardened Materials |
Reach (xD) | 3xD |
Size | 1.00mm |
Cutting Diameter (DC) (Decimal Inch) | 0.0394 |
Cutting Diameter (DC) (mm) | 1.00 |
Shank Diameter (DCON) (Decimal Inch) | 0.0394 |
Shank Diameter (DCON) (mm) | 1.00 |
Flute Length (LCF) (Decimal Inch) | 0.2362 |
Flute Length (LCF) (mm) | 6.00 |
Overall Length (OAL) (Decimal Inch) | 1.0236 |
Overall Length (OAL) (mm) | 26.00 |
Shank Length (LS) (Decimal Inch) | 0.8020 |
Point Angle (Degree) | 140 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00000 / -.00050 |
Cutting Diameter (DC) Tolerance (mm) | +.0000 / -.0127 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Shank Type | Straight |
Coolant Option | External Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 0 |
Variable Helix | No |
Center Cutting | No |
Chip Breaker | No |
DIN Standard | DIN 6539 |
Number of Margins | 2 |
Shipping Weight | 0.0040 |
Series | 106 |
Weldon Flat | No |
US Stock | 2 |
Shank Length (LS) (mm) | 20.37 |
Usable Length (LU) (Decimal Inch) | 0.1771 |
Usable Length (LU) (mm) | 4.50 |
Coating Description | AlTiN (Ti-NAMITE-A) |
