0.70mm Dia, 2 Flute, Ball Nose End Mill - 05027


SERIES: M2BM
Micro End Mill
0.70mm Dia, 2.10mm LOC, 3.18mm Shank Dia, 2 Flute, 30 Degree Helix, Uncoated, Series M2BM, Micro, Ball Nose End Mill - 05027
Feature & Benefits
Two flute design is ideal for softer alloyed, non-ferrous material applications that require slotting or involve heavy chip loads
Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
High performance carbide substrate designed specifically for Micro Tool applications
Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
Manufactured in accordance with KSPT ISO certified quality procedures
List Price: $25.06
U.S. stocked items ship next day
Total Available U.S. :99
SeriesM2BM
Series DescriptionMicro End Mill
High PerformanceNo
End ConfigurationBall Nose
Tool LengthRegular
Unit (inch/mm)mm
Number of Flutes2
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials
LOC (xD)3xD

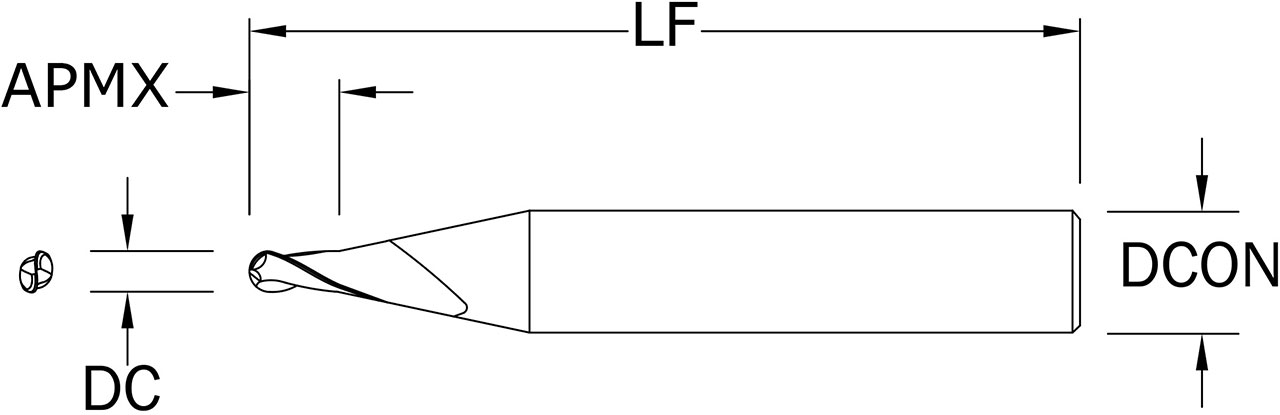

Cutting Diameter (DC) (Decimal Inch)0.0276
Cutting Diameter (DC) (mm)0.70
Shank Diameter (DCON) (Decimal Inch)0.1250
Shank Diameter (DCON) (mm)3.18
Length of Cut (APMX) (Decimal Inch)0.0827
Length of Cut (APMX) (mm)2.10
Overall Length (LF) (Decimal Inch)1.5000
Overall Length (LF) (mm)38.10
Shank Length (LS) (Decimal Inch)1.4173
Shank Length (LS) (mm)36.00
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0010
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.025
Shank Diameter (DCON) Tolerance (ISO)h6
Shank TypeStraight
Weldon FlatNo
Coolant OptionExternal Coolant
Coating DescriptionBright/Uncoated
Additional GeometryRight Hand Cut Direction (RHC)
Rake AnglePositive
Profile Angle (Degree)15
Helix AngleRight Spiral
Helix Angle (Degree)30
Variable HelixNo
Center CuttingYes
Chip BreakerNo
KPT Micro Crossover (Old Material Number)8503532
KPT Micro Crossover (Part Number)1625-0276.083
KPT Micro Crossover TypeDirect Match
Shipping Weight0.0121
US Stock99
Shank Diameter (DCON) (Fractional Inch)1/8
