0.6050" Dia, 5 Flute, Square End End Mill - 37390
SERIES: PRT
Picatinny Rail Tools
0.6050" Dia, 0.4100" LOC, 5/8" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series PRT, Picatinny Rail Tools, Square End End Mill - 37390
Feature & Benefits
Open Flute design improves chip removal at high feed rates
Specially engineered flute shape for improved chip control
Circular land improves surface finish and chatter supression
Symmetrical end gashing improves balance in high speed operations
Meets MIL-STD 1913
| Series Description | Picatinny Rail Tools |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | inch |
| Number of Flutes | 5 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(S) High Temp Alloy |

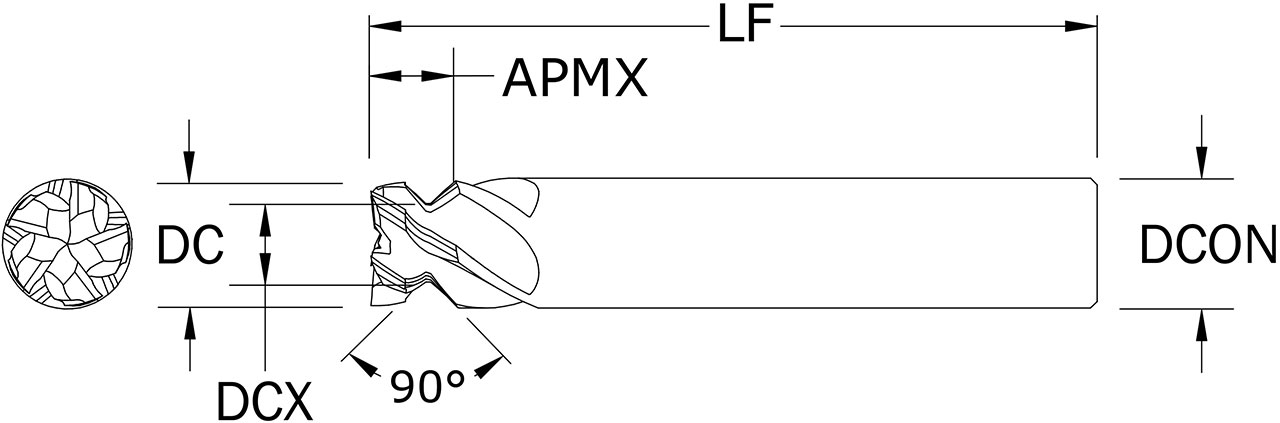

| Cutting Diameter (DC) (Decimal Inch) | 0.6050 |
| Cutting Diameter (DC) (mm) | 15.37 |
| Shank Diameter (DCON) (Decimal Inch) | 0.6250 |
| Shank Diameter (DCON) (mm) | 15.88 |
| Length of Cut (APMX) (Decimal Inch) | 0.4100 |
| Length of Cut (APMX) (mm) | 10.41 |
| Overall Length (LF) (Decimal Inch) | 3.5000 |
| Overall Length (LF) (Fractional Inch) | 3-1/2 |
| Overall Length (LF) (mm) | 88.90 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0010/-0.0010 |
| Cutting Diameter (DC) Tolerance (mm) | +0.025/-0.025 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Side Profile | Picatinny Dovetail Form |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Shipping Weight | 0.4990 |
| Series | PRT |
| Weldon Flat | No |
| US Stock | 0 |
| Shank Diameter (DCON) (Fractional Inch) | 5/8 |
| Tool Length | Stub |
| Coating Description | TM (Ti-NAMITE-M) |
| Flute Type | Spiral |
Alternate Products
0.6050" Dia, 0.4100" LOC, 5/8" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series PRT, Picatinny Rail Tools, Square End End Mill - 37391
