0.30mm Dia, 2 Flute, Ball Nose End Mill - 05022
SERIES: M2BM
Micro End Mill
0.30mm Dia, 0.90mm LOC, 3.18mm Shank Dia, 2 Flute, 30 Degree Helix, Uncoated, Series M2BM, Micro, Ball Nose End Mill - 05022
Feature & Benefits
Two flute design is ideal for softer alloyed, non-ferrous material applications that require slotting or involve heavy chip loads
Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
High performance carbide substrate designed specifically for Micro Tool applications
Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
Manufactured in accordance with KSPT ISO certified quality procedures
| Series | M2BM |
|---|---|
| Series Description | Micro End Mill |
| High Performance | No |
| End Configuration | Ball Nose |
| Tool Length | Regular |
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| LOC (xD) | 3xD |

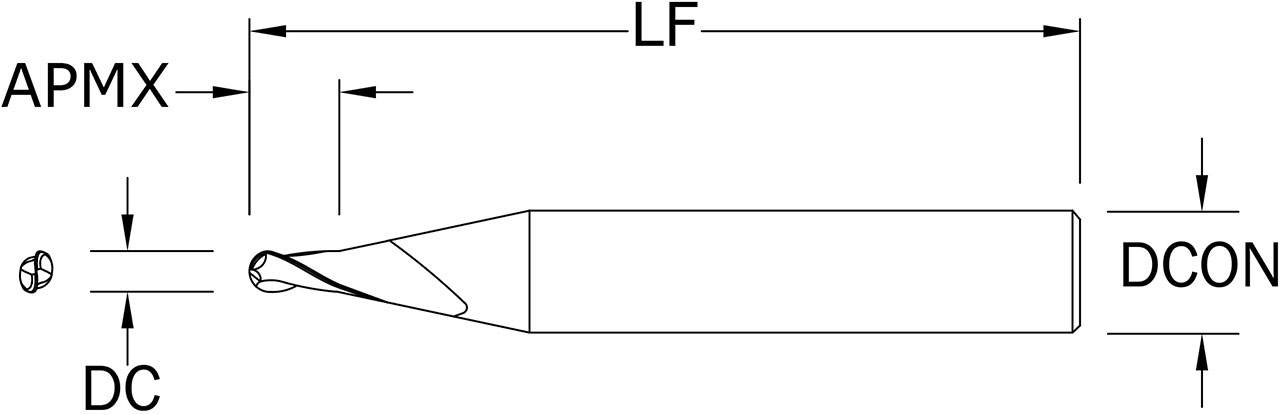

| Cutting Diameter (DC) (Decimal Inch) | 0.0118 |
| Cutting Diameter (DC) (mm) | 0.30 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
| Shank Diameter (DCON) (mm) | 3.18 |
| Length of Cut (APMX) (Decimal Inch) | 0.0354 |
| Length of Cut (APMX) (mm) | 0.90 |
| Overall Length (LF) (Decimal Inch) | 1.5000 |
| Overall Length (LF) (mm) | 38.10 |
| Shank Length (LS) (Decimal Inch) | 1.4646 |
| Shank Length (LS) (mm) | 37.20 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0010 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.025 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Weldon Flat | No |
| Coolant Option | External Coolant |
| Coating Description | Bright/Uncoated |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Profile Angle (Degree) | 15 |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| KPT Micro Crossover (Old Material Number) | 8503451 |
| KPT Micro Crossover (Part Number) | 1625-0118.035 |
| KPT Micro Crossover Type | Direct Match |
| Shipping Weight | 0.0121 |
| US Stock | 29 |
| Shank Diameter (DCON) (Fractional Inch) | 1/8 |
