SMOOTH

CUTTING

PERFORMANCE

Multi-Carb logo

Multi-Carb | Series 66

p
m
k
s

The Multi-Carb High-Performance Finishing End Mill incorporates a large number of flutes for stability and high feed finishing capabilities in applications where surface finish and tolerance are critical factors. The large flute count design allows smoother cutting performance and increased tool life, positively impacting productivity and quality levels.

View Products
Where to Buy

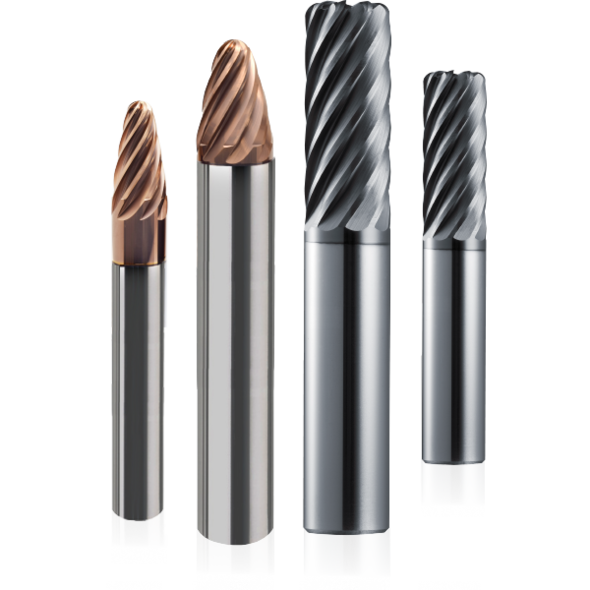

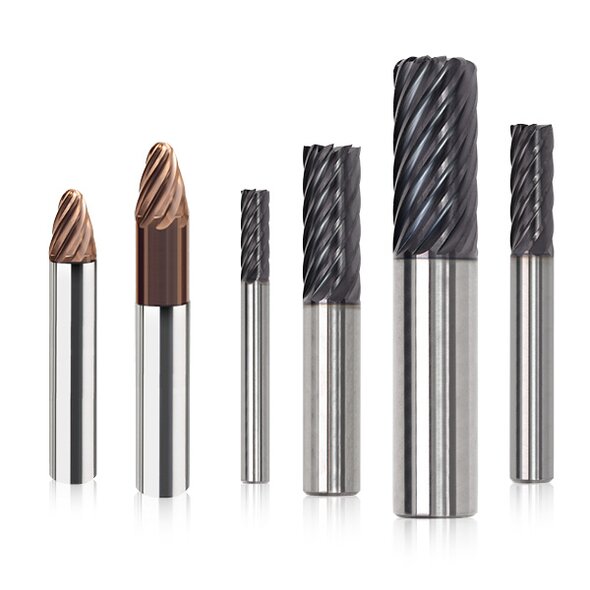

Multi-Carb end mill group

Features

Flute

7 Flute end mill icon
9 Flute end mill icon
11 Flute end mill icon
  • High flute count design results in smoother cutting performance and enhanced tool life in precise finishing applications.
  • Available with 7, 9, or 11 flutes based on tool diameter.

Corner Geometry

Rounded Corner end mill geometry
  • Enhanced corner geometry with tight tolerance corner radii.
  • Various square and round-corner geometry options are available.
  • Series 67b offers a tangential form radius and integrated nose radius for highly efficient finishing and semi-finishing profiling. Capable of machining profiles and blends with one tool.

Core

End mill icon
  • Heavy core and rigid design allows for straight walls.
Coatings
Ti-Namite-a logo
  • Available with Ti-NAMITE®-A coating for superior wear, edge build-up resistance, and extended tool life in difficult-to-machine materials like Stainless Steel.
Multi-Carb end mill line drawing

Series Details

Lineup Details

  • Cutting Diameter: 3/16"-1 | 6,0 mm - 25 mm
  • Length of Cut: 5/8"-2" | 19,0 mm - 38,0 mm
  • Overall Length: 2"-6" | 63,0 mm - 104 mm
  • Shank Diameter: 3/16"-1 | 6,0 mm - 25,0 mm
  • Corner Radius: .010-.120 | 0,5 mm - 5,0 mm
  • Number of Flutes: 7,9,11
  • Coating(s): Ti-Namite-A

Primary Material Applications

  • Stainless Steel ≤ 45HRc
  • High Temp Alloys
  • Titanium Alloys ≤ 45 HRc

Industry Applications

Aerospace Icon

Aerospace

Medical Icon

Medical

Power Generation Icon

Power Generation

Automotive Icon

Automotive

Mold and Die Icon

Mold & Die

Casting and Foundries Icon

Casting & Foundries

General Engineering Icon

General Engineering

Secondary Material Applications

  • Steel ≤ 45 HRc
  • Cast Iron ≤ 45HRc
  • Cast Iron ≥ 45 HRc
  • Hardened Steels < 45 HRc

Resources

Download

Multi-Carb Brochure cover

Multi-Carb Brochure

Download

Multi-Carb Barrel Brochure Cover

Multi-Carb Barrel Brochure

Download

Aerospace Machining Solutions Cover Image

Aerospace Machining Solutions

Download

Medical Machining Solutions brochure cover image

Medical Machining Solutions

Download

Tooling Matrix brochure cover image

Tooling Matrix

Multi-Carb | 66

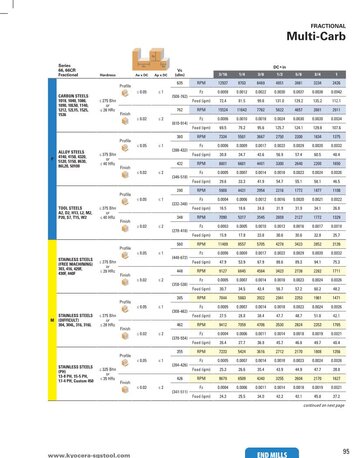

Speed / Feed

Multi-Carb | 66M

Speed / Feed

Multi-Carb | 67B

Speed / Feed

Turbine blade manufactured on a 5th axis CNC machine and an end mill.
