FEED FASTER
IN DIFFICULT MATERIALS

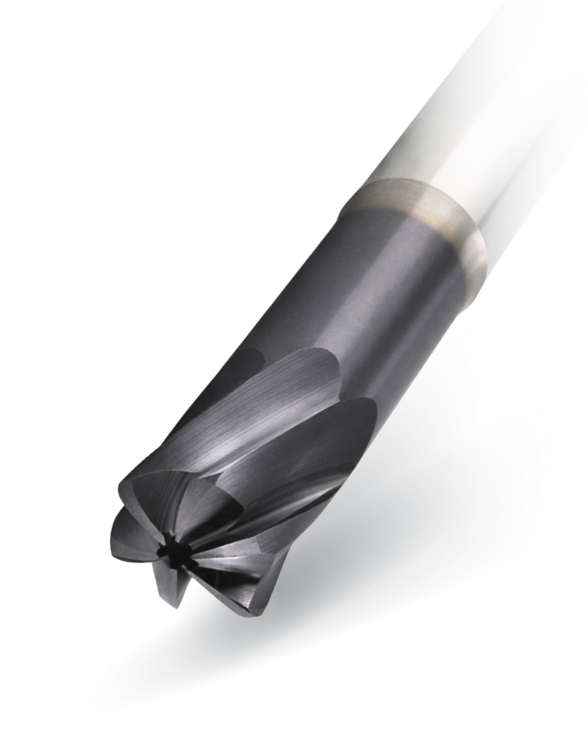

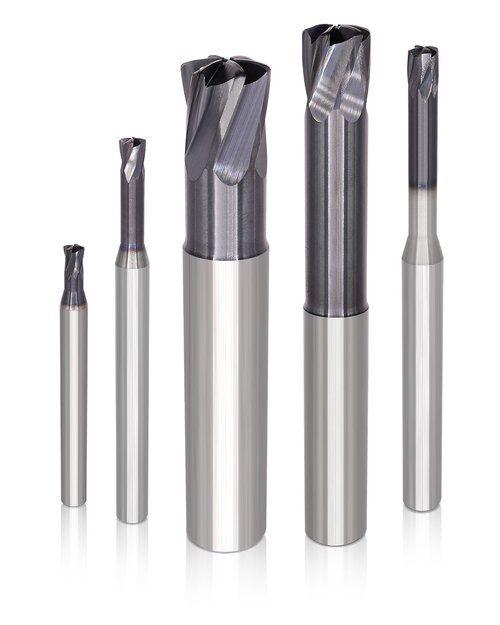

Hi-Per Feed MS
Engineered for high-feed machining of stainless steels and high-temperature alloys, the Hi-Per Feed MS combines advanced geometry, premium carbide, and Ti-NAMITE-A coating technology to maximize metal removal while maintaining exceptional process stability. The result is shorter cycle times, extended tool life, and reliable performance in demanding applications.
Features
Promotes efficient chip evacuation and reliable performance during aggressive high-feed milling.
Delivers coolant directly to the cutting zone for improved chip evacuation and heat control.
Designed for shallow depths of cut and high feed rates to maximize metal removal efficiency.
Creates an axial chip thinning effect that redirects cutting forces into the spindle, improving stability and reducing tool deflection.
Advanced PVD coating reduces friction, improves wear resistance, and minimizes built-up edge when machining stainless steels and high-temperature alloys.

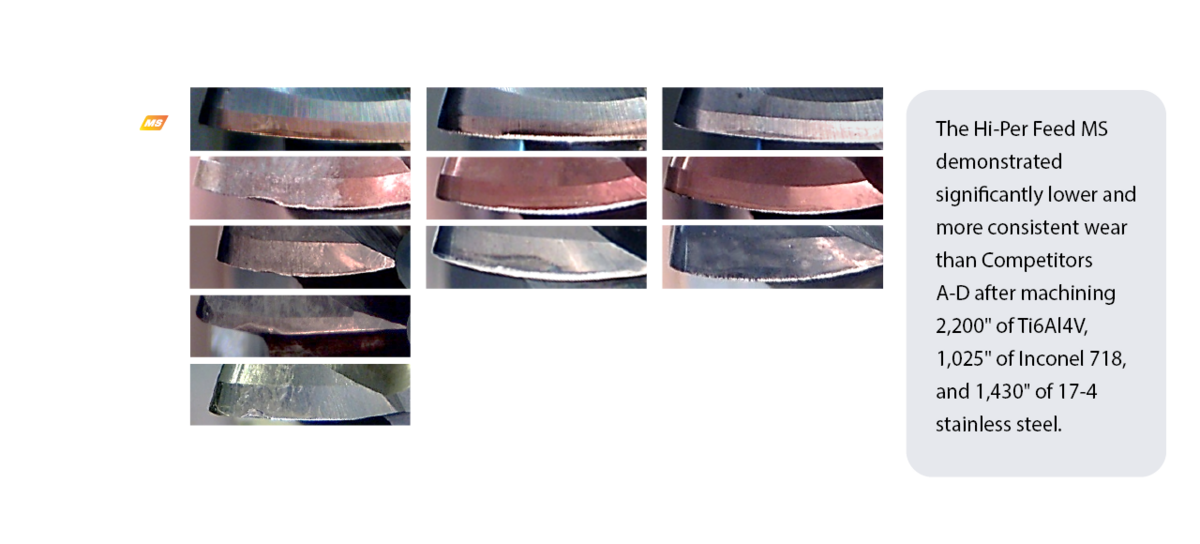

Wear Comparison (Internal Evaluation)
Series Details
Lineup Details
- Cutting Diameter: 1/8" - 1/2" | 2,0mm - 12,0mm
- Length of Cut: 0.007" - 0.026" | 0,10mm - 0,62mm
- Overall Length: 2-1/2" - 5" | 57mm - 125mm
- Shank Diameter: 1/4" - 1/2" | 6,0mm - 12,0mm
- Theoretical Radius: 0.017" - 0.067" | 0,27mm - 1,60mm
- Coating: Ti-NAMITE-A
- Special Options: 2xD, 4xD, and 6xD reach lengths. Standard and central coolant hole options based on diameter.
Primary Material Applications
- Stainless Steel ≤ 35 HRc
- High Temp Alloys ≤ 43 HRc
- Titanium Alloys ≤ 45 HRc
Industry Applications
Aerospace
Medical
Power Generation
Automotive
Mold & Die
Casting & Foundries
General Engineering
